SKU: UCFCX12D1-NTN

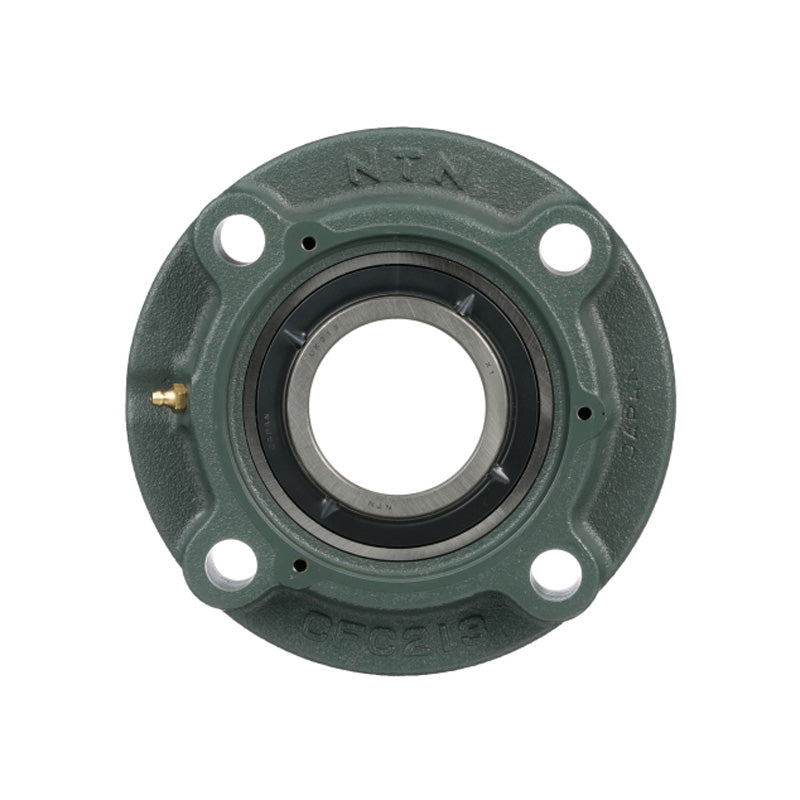

NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
- Regular price
- $118.04 ex VAT
- Sale price
- $118.04
- Regular price
-
In stock
Quantity Price Breaks
10+
$105.06
19+
$99.15
29+
$97.97
39+
$96.79
49+
$95.61
74+
$94.43
99+
$88.53
199+
$87.35
249+
$86.17
499+
$84.99
999+
$82.63
SKU:
UCFCX12D1-NTN
NTN UCFCX12D1 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
- Regular price
- $118.04 ex VAT
- Sale price
- $118.04
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| L | = | 194mm |
| J | = | 165mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 116.7mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 11mm | |
| N | = | 16mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 20mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 33mm | |
| A | = | 53mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 140mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 70.7mm | |
| B | = | 65.1mm |
| S | = | 25.4mm |
| Fixing bolt | = | M14 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 63.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 40 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.15 kN | |
| --- | = | Unit information |
| Mass | = | 5.5 kg |
