SKU: UCFCE212-SNR

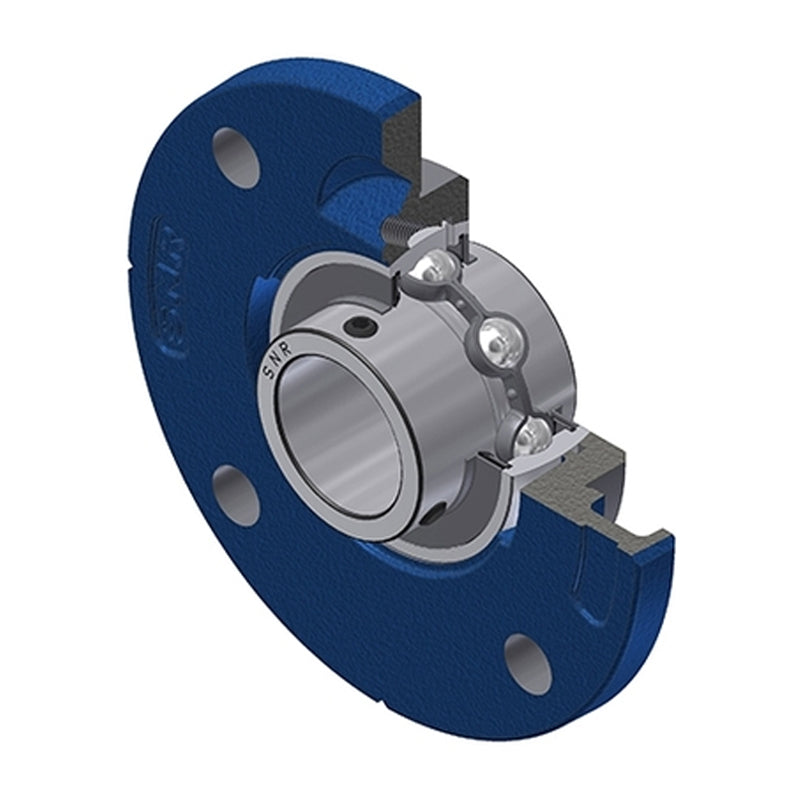

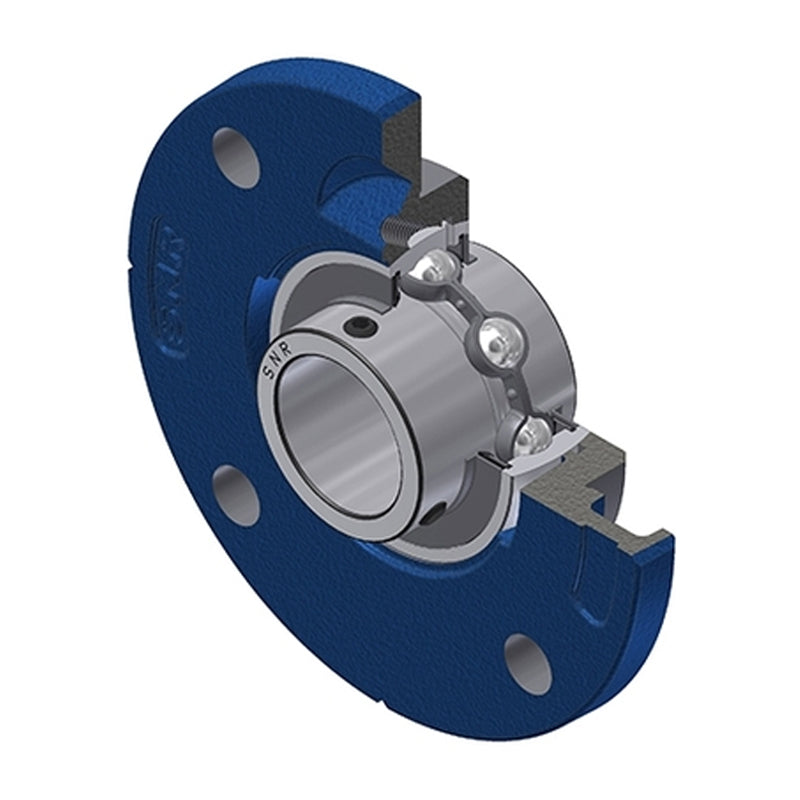

SNR UCFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
- Regular price
- $89.37 ex VAT
- Sale price
- $89.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$79.54
19+
$75.07
29+
$74.18
39+
$73.28
49+
$72.39
74+
$71.50
99+
$67.03
199+
$66.13
249+
$65.24
499+
$64.35
999+
$62.56
SKU:
UCFCE212-SNR
SNR UCFCE212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
- Regular price
- $89.37 ex VAT
- Sale price
- $89.37
- Regular price
-
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 30.5mm |
| A1 | = | 16mm |
| A2 | = | 38.7mm |
| A3 | = | 3mm |
| B | = | 65.1mm |
| e | = | -1mm |
| H3 | = | 135mm |
| J | = | 160mm |
| L | = | 195mm |
| N | = | 18mm |
| S | = | 25.4mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.86 kg |
