SKU: UCFCE206-SNR

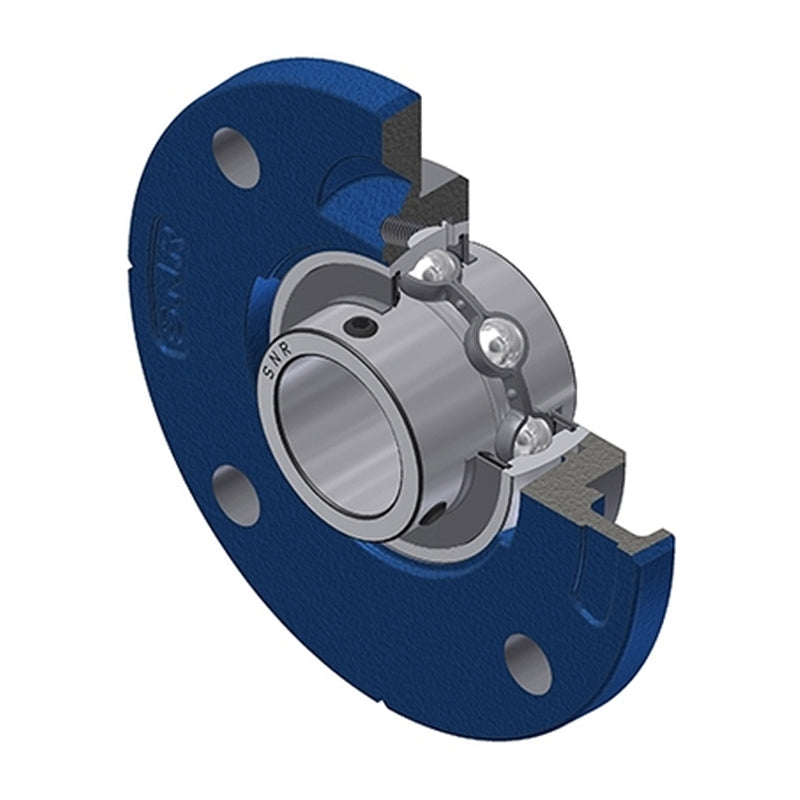

SNR UCFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert - Allow 2-3 Days
- Regular price
- $40.37 ex VAT
- Sale price
- $40.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$35.93
19+
$33.91
29+
$33.51
39+
$33.10
49+
$32.70
74+
$32.30
99+
$30.28
199+
$29.87
249+
$29.47
499+
$29.07
999+
$28.26
SKU:
UCFCE206-SNR
SNR UCFCE206 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert - Allow 2-3 Days
- Regular price
- $40.37 ex VAT
- Sale price
- $40.37
- Regular price
-
Description
UCFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 30mm |
| A | = | 21mm |
| A1 | = | 9.5mm |
| A2 | = | 20.2mm |
| A3 | = | 2mm |
| B | = | 38.1mm |
| e | = | -2mm |
| H3 | = | 80mm |
| J | = | 100mm |
| L | = | 125mm |
| N | = | 11.5mm |
| S | = | 15.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.99 kg |
