SKU: UCFC218-SNR

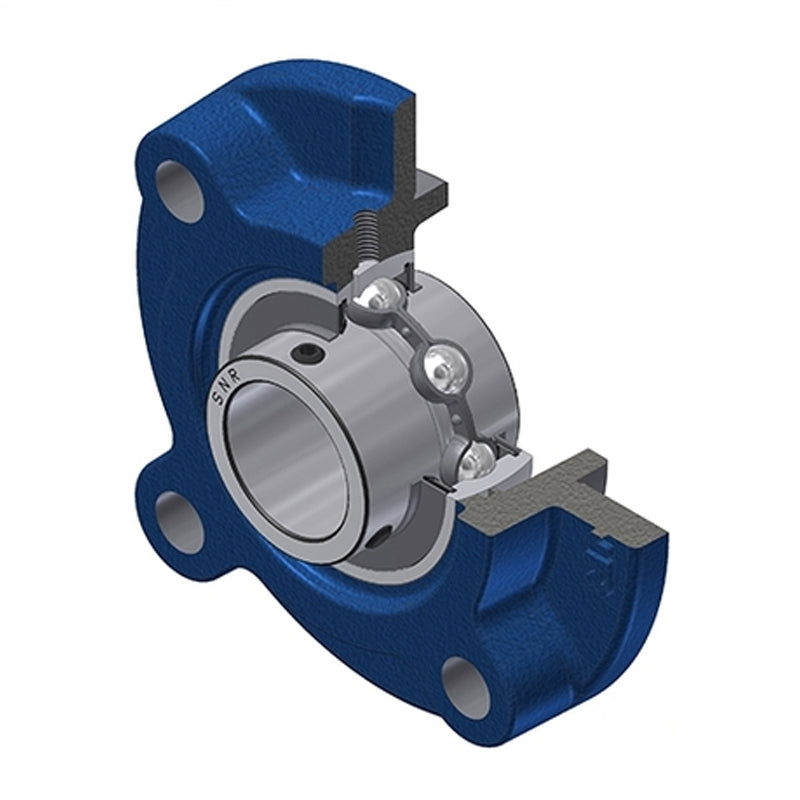

SNR UCFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
- Regular price
- $296.82 ex VAT
- Sale price
- $296.82
- Regular price
-
In stock
Quantity Price Breaks
10+
$264.17
19+
$249.33
29+
$246.36
39+
$243.39
49+
$240.42
74+
$237.46
99+
$222.62
199+
$219.65
249+
$216.68
499+
$213.71
999+
$207.77
SKU:
UCFC218-SNR
SNR UCFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Insert - Allow 2-3 Days
- Regular price
- $296.82 ex VAT
- Sale price
- $296.82
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 90mm |
| A | = | 68mm |
| A1 | = | 20mm |
| A2 | = | 78.3mm |
| A4 | = | 50mm |
| B | = | 96mm |
| e | = | 22mm |
| H3 | = | 190mm |
| J | = | 220mm |
| L | = | 265mm |
| N | = | 23mm |
| S | = | 39.7mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 96 kN |
| Static load C0 | = | 71.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 13.07 kg |
