SKU: UCFC216D1-NTN

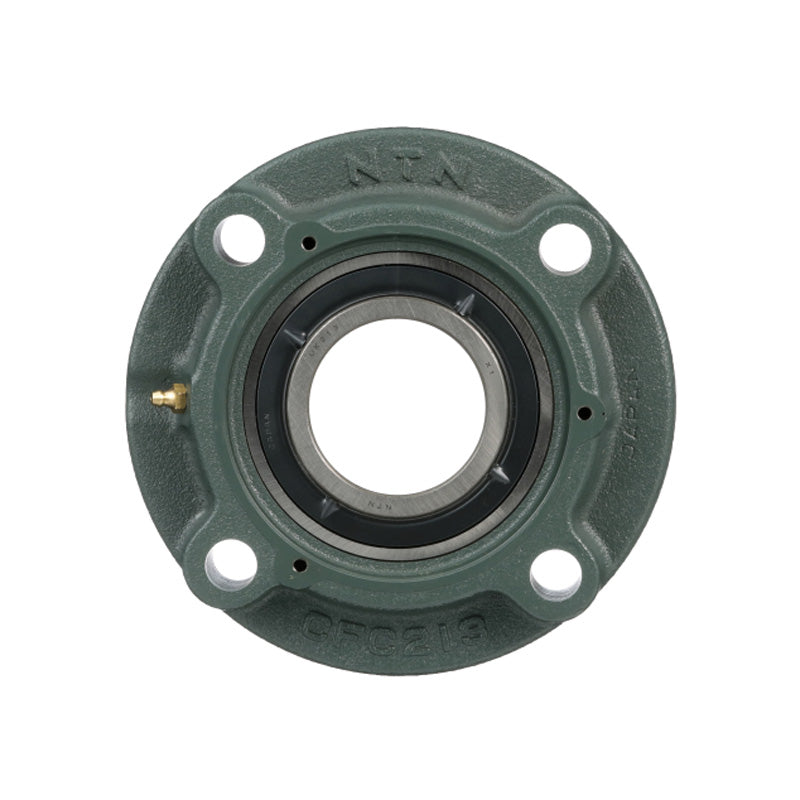

NTN UCFC216D1 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
- Regular price
- $221.77 ex VAT
- Sale price
- $221.77
- Regular price
-
In stock
Quantity Price Breaks
10+
$197.38
19+
$186.29
29+
$184.07
39+
$181.85
49+
$179.63
74+
$177.42
99+
$166.33
199+
$164.11
249+
$161.89
499+
$159.67
999+
$155.24
SKU:
UCFC216D1-NTN
NTN UCFC216D1 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Insert - Allow 2-3 Days
- Regular price
- $221.77 ex VAT
- Sale price
- $221.77
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

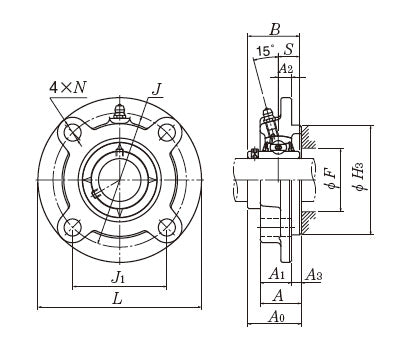

| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| L | = | 240mm |
| J | = | 200mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 141.4mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 18mm | |
| N | = | 23mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 42mm | |
| A | = | 58mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 170mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 83.3mm | |
| B | = | 82.6mm |
| S | = | 33.3mm |
| F (Min.) | = | 105mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 80.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 53 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.95 kN | |
| --- | = | Unit information |
| Mass | = | 9.1 kg |
