SKU: UCFC214D1-NTN

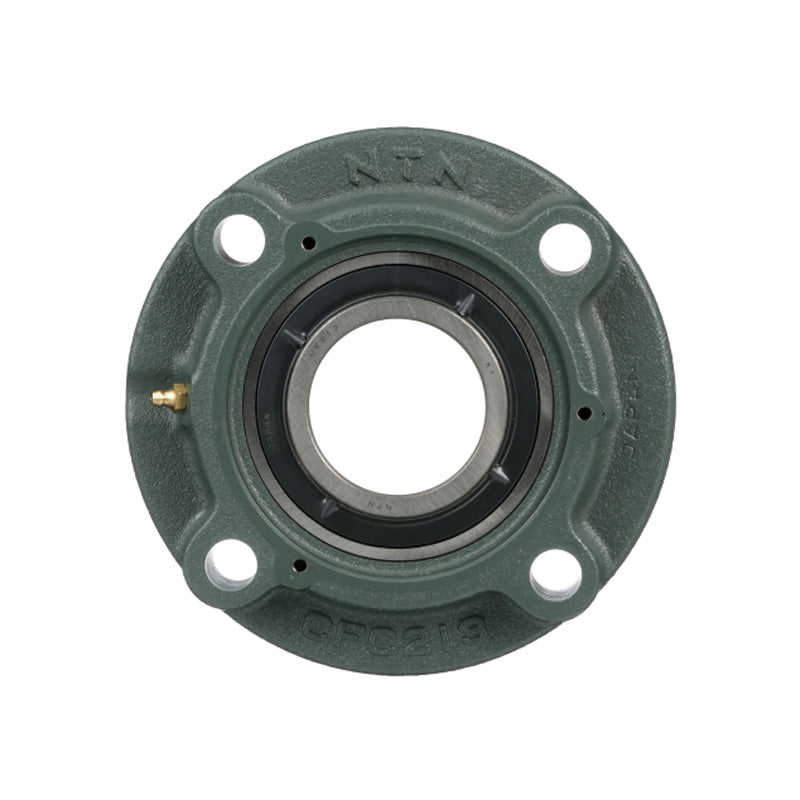

NTN UCFC214D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $160.36 ex VAT
- Sale price
- $160.36
- Regular price
-
In stock
Quantity Price Breaks
10+
$142.72
19+
$134.70
29+
$133.10
39+
$131.50
49+
$129.89
74+
$128.29
99+
$120.27
199+
$118.67
249+
$117.06
499+
$115.46
999+
$112.25
SKU:
UCFC214D1-NTN
NTN UCFC214D1 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $160.36 ex VAT
- Sale price
- $160.36
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 70mm |
| L | = | 215mm |
| J | = | 177mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 125.2mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 17mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 14mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| A | = | 54mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 150mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 75.4mm | |
| B | = | 74.6mm |
| S | = | 30.2mm |
| F (Min.) | = | 94mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 69 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 44 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.45 kN | |
| --- | = | Unit information |
| Mass | = | 7 kg |
