SKU: UCFC214-SNR

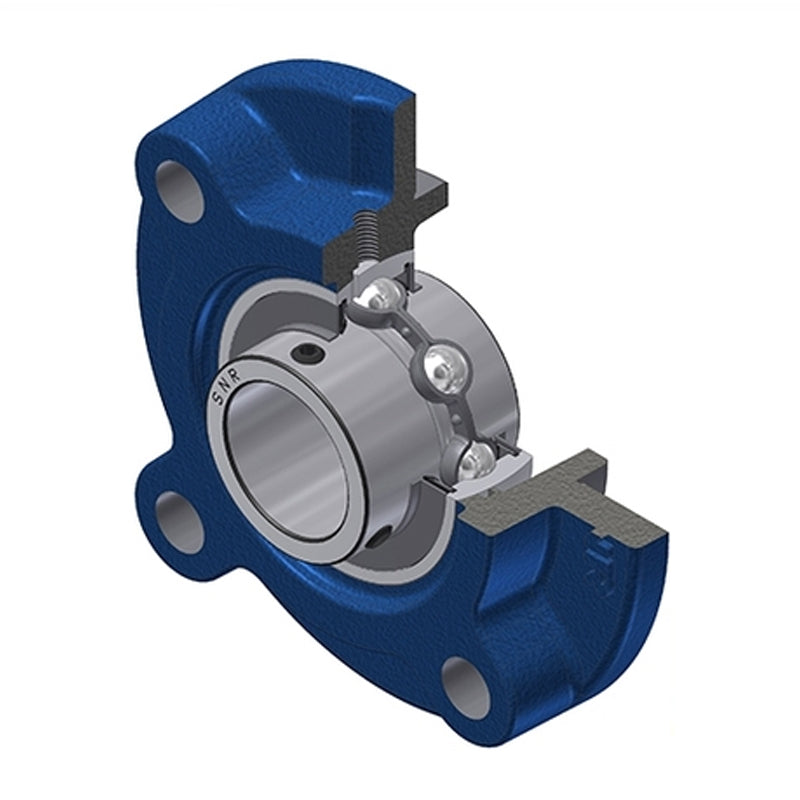

SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $155.69 ex VAT
- Sale price
- $155.69
- Regular price
-
In stock
Quantity Price Breaks
10+
$138.56
19+
$130.78
29+
$129.22
39+
$127.67
49+
$126.11
74+
$124.55
99+
$116.77
199+
$115.21
249+
$113.65
499+
$112.10
999+
$108.98
SKU:
UCFC214-SNR
SNR UCFC214 Metric Four Bolt Cast Iron Round Flanged Housing with 70mm Insert - Allow 2-3 Days
- Regular price
- $155.69 ex VAT
- Sale price
- $155.69
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 70mm |
| A | = | 52mm |
| A1 | = | 16mm |
| A2 | = | 61.4mm |
| A4 | = | 38mm |
| B | = | 74.6mm |
| e | = | 17mm |
| H3 | = | 150mm |
| J | = | 177mm |
| L | = | 215mm |
| N | = | 19mm |
| S | = | 30.2mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 45 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 6.32 kg |
