SKU: UCFC213D1-NTN

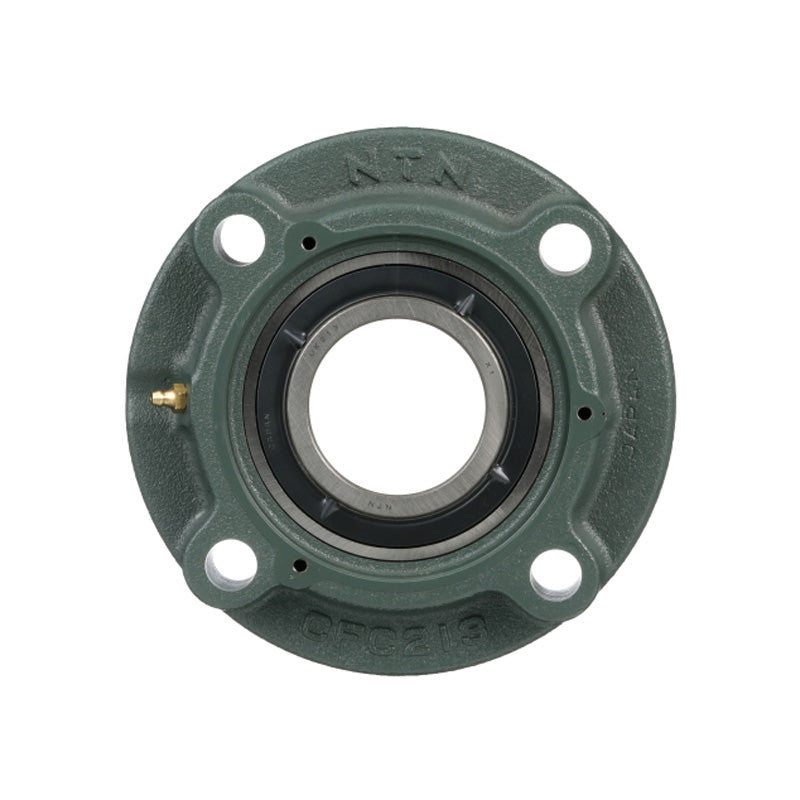

NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
- Regular price
- $115.81 ex VAT
- Sale price
- $115.81
- Regular price
-
In stock
Quantity Price Breaks
10+
$103.07
19+
$97.28
29+
$96.12
39+
$94.96
49+
$93.81
74+
$92.65
99+
$86.86
199+
$85.70
249+
$84.54
499+
$83.38
999+
$81.07
SKU:
UCFC213D1-NTN
NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
- Regular price
- $115.81 ex VAT
- Sale price
- $115.81
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 65mm |
| L | = | 205mm |
| J | = | 170mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 120.2mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 16mm | |
| N | = | 19mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 14mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 36mm | |
| A | = | 50mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 145mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 69.7mm | |
| B | = | 65.1mm |
| S | = | 25.4mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 63.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 40 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.15 kN | |
| --- | = | Unit information |
| Mass | = | 5.8 kg |
