SKU: UCFC212-SNR

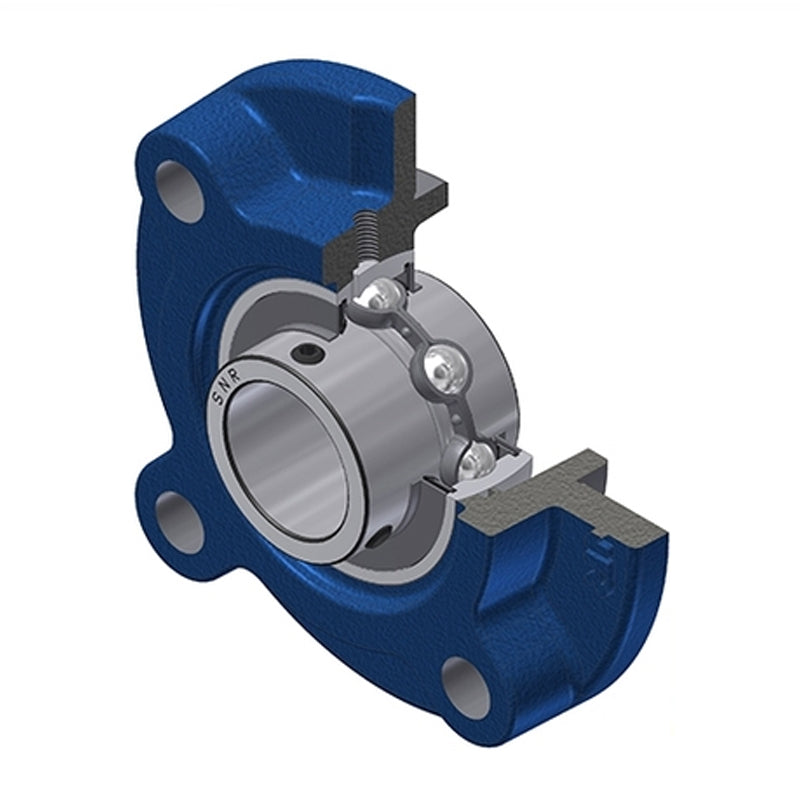

SNR UCFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert
- Regular price
- $93.86 ex VAT
- Sale price
- $93.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$83.54
19+
$78.84
29+
$77.90
39+
$76.97
49+
$76.03
74+
$75.09
99+
$70.40
199+
$69.46
249+
$68.52
499+
$67.58
999+
$65.70
SKU:
UCFC212-SNR
SNR UCFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert
- Regular price
- $93.86 ex VAT
- Sale price
- $93.86
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 48mm |
| A1 | = | 15mm |
| A2 | = | 56.7mm |
| A4 | = | 36mm |
| B | = | 65.1mm |
| e | = | 17mm |
| H3 | = | 135mm |
| J | = | 160mm |
| L | = | 195mm |
| N | = | 19mm |
| S | = | 25.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.92 kg |
