SKU: UCFC208-SNR

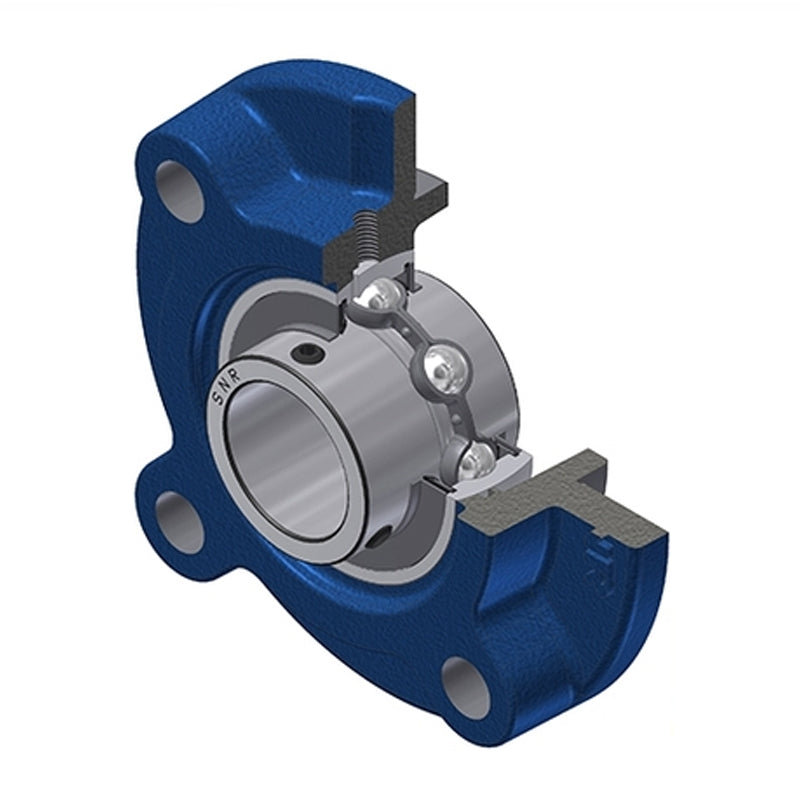

SNR UCFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
- Regular price
- $51.90 ex VAT
- Sale price
- $51.90
- Regular price
-
In stock
Quantity Price Breaks
10+
$46.19
19+
$43.60
29+
$43.08
39+
$42.56
49+
$42.04
74+
$41.52
99+
$38.93
199+
$38.41
249+
$37.89
499+
$37.37
999+
$36.33
SKU:
UCFC208-SNR
SNR UCFC208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
- Regular price
- $51.90 ex VAT
- Sale price
- $51.90
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 36mm |
| A1 | = | 9mm |
| A2 | = | 41.2mm |
| A4 | = | 26mm |
| B | = | 49.2mm |
| e | = | 11mm |
| H3 | = | 100mm |
| J | = | 120mm |
| L | = | 145mm |
| N | = | 14mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.99 kg |
