SKU: UCFC204N-SNR

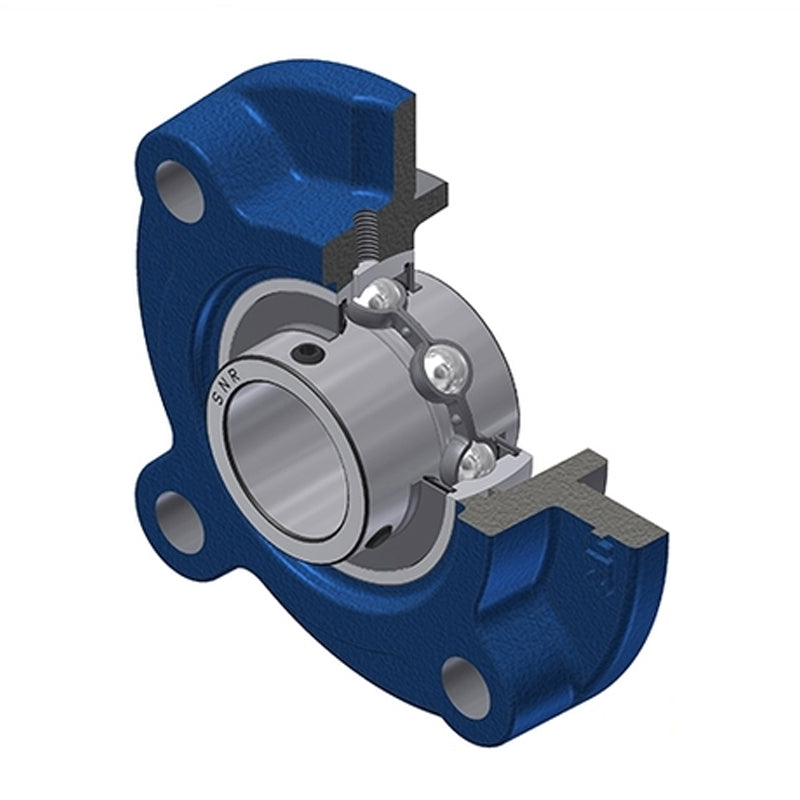

SNR UCFC204N Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
- Regular price
- $34.44 ex VAT
- Sale price
- $34.44
- Regular price
-
Not in stock
Quantity Price Breaks
3
$30.65
4
$28.93
9
$28.59
19
$28.24
49
$27.90
99
$27.55
499
$25.83
999
$25.49
1999
$25.14
2999
$24.80
4999
$24.11
SKU:
UCFC204N-SNR
SNR UCFC204N Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert - Allow 2-3 Days
- Regular price
- $34.44 ex VAT
- Sale price
- $34.44
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

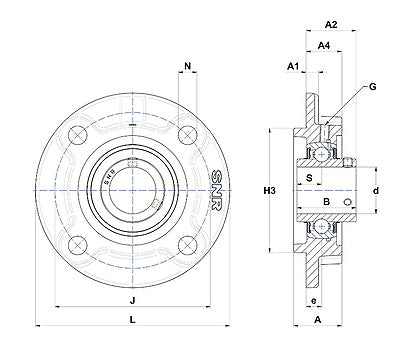

| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 25.5mm |
| A1 | = | 6mm |
| A2 | = | 28.3mm |
| A4 | = | 20.5mm |
| B | = | 31mm |
| e | = | 10mm |
| H3 | = | 62mm |
| J | = | 78mm |
| L | = | 100mm |
| N | = | 12mm |
| S | = | 12.7mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.66 kg |
