SKU: UCFA209-SNR

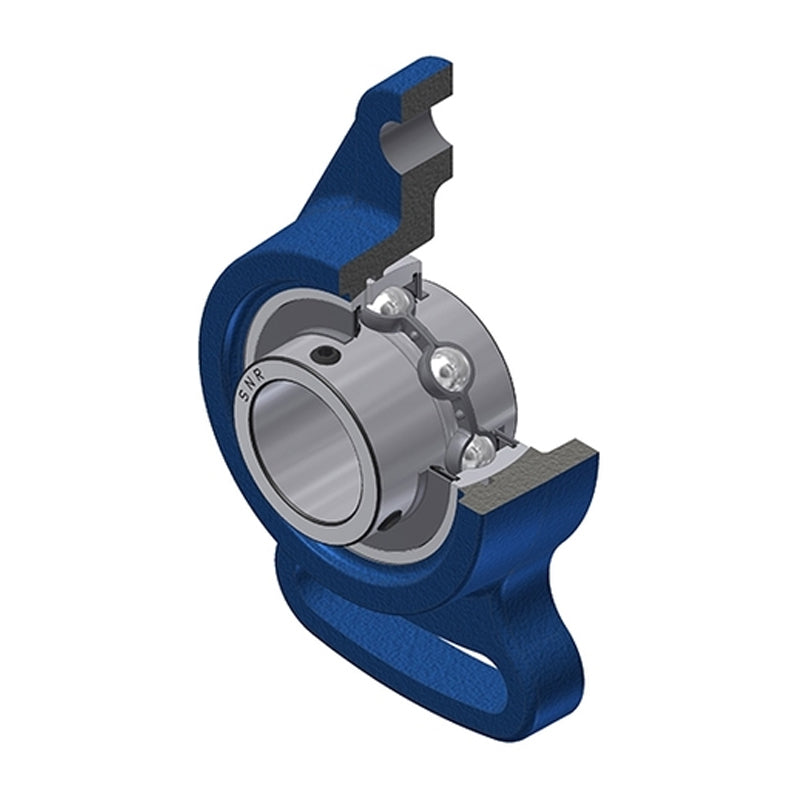

SNR UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert - Allow 2-3 Days
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
In stock
Quantity Price Breaks
10+
$55.43
19+
$52.32
29+
$51.69
39+
$51.07
49+
$50.45
74+
$49.82
99+
$46.71
199+
$46.09
249+
$45.46
499+
$44.84
999+
$43.60
SKU:
UCFA209-SNR
SNR UCFA209 Metric Cast Iron Adjustable Flange Unit with 45mm Insert - Allow 2-3 Days
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 38mm |
| A1 | = | 18mm |
| A2 | = | 52.2mm |
| B | = | 49.2mm |
| e | = | 22mm |
| H | = | 181mm |
| J | = | 148mm |
| J1 | = | 72mm |
| L | = | 108mm |
| L1 | = | 90mm |
| N | = | 15mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.88 kg |
