SKU: UCFA209-27

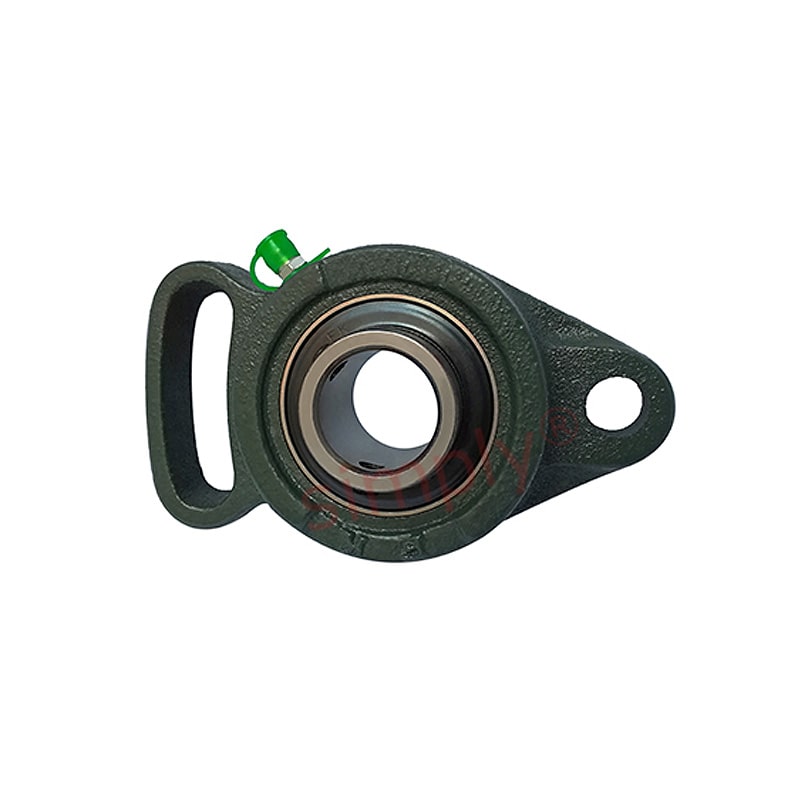

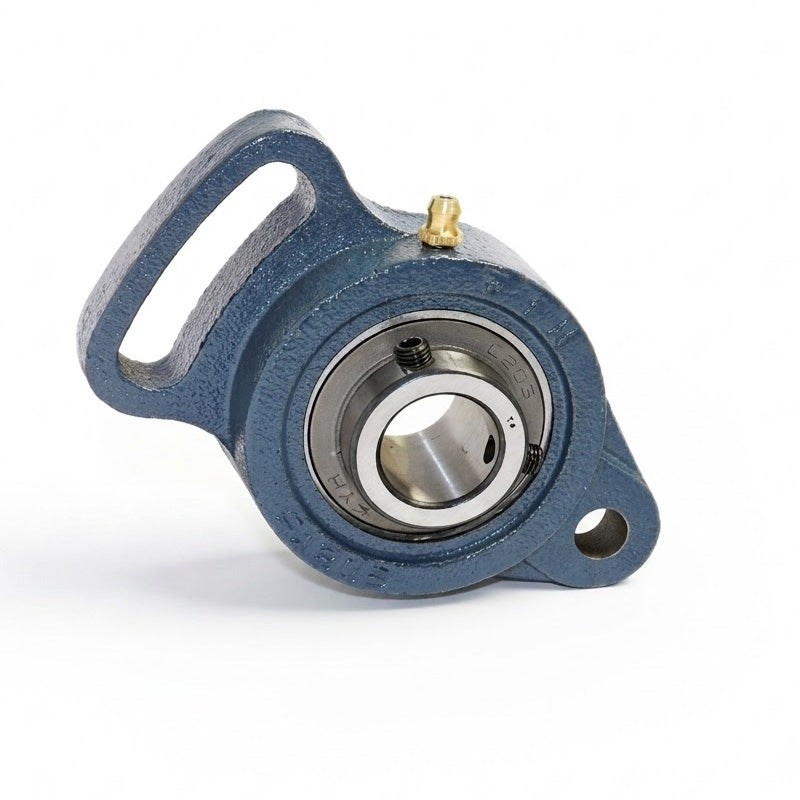

UCFA209-27 Imperial Cast Iron Adjustable Flange Unit with 1-11/16 inch Insert
- Regular price
- $34.74 ex VAT
- Sale price
- $34.74
- Regular price
-
In stock
Quantity Price Breaks
10+
$30.92
19+
$29.18
29+
$28.83
39+
$28.49
49+
$28.14
74+
$27.79
99+
$26.06
199+
$25.71
249+
$25.36
499+
$25.01
999+
$24.32
SKU:
UCFA209-27
UCFA209-27 Imperial Cast Iron Adjustable Flange Unit with 1-11/16 inch Insert
- Regular price
- $34.74 ex VAT
- Sale price
- $34.74
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-11/16 inch |
| a | = | 7-3/64 inch |
| e | = | 5-3/4 inch |
| i | = | 55/64 inch |
| g | = | 45/64 inch |
| l | = | 1-37/64 inch |
| s | = | 43/64 inch |
| b | = | 4-3/8 inch |
| z | = | 2-1/16 inch |
| f | = | 2-53/64 inch |
| c | = | 3-35/64 inch |
| B | = | 1.937 inch |
| n | = | 0.748 inch |
| Bolt size | = | 1/2 inch |
| Bearing no | = | UC209-27 |
| Housing no | = | FA209 |
| Weight | = | 2.04 kg |
