SKU: UCFA206-18

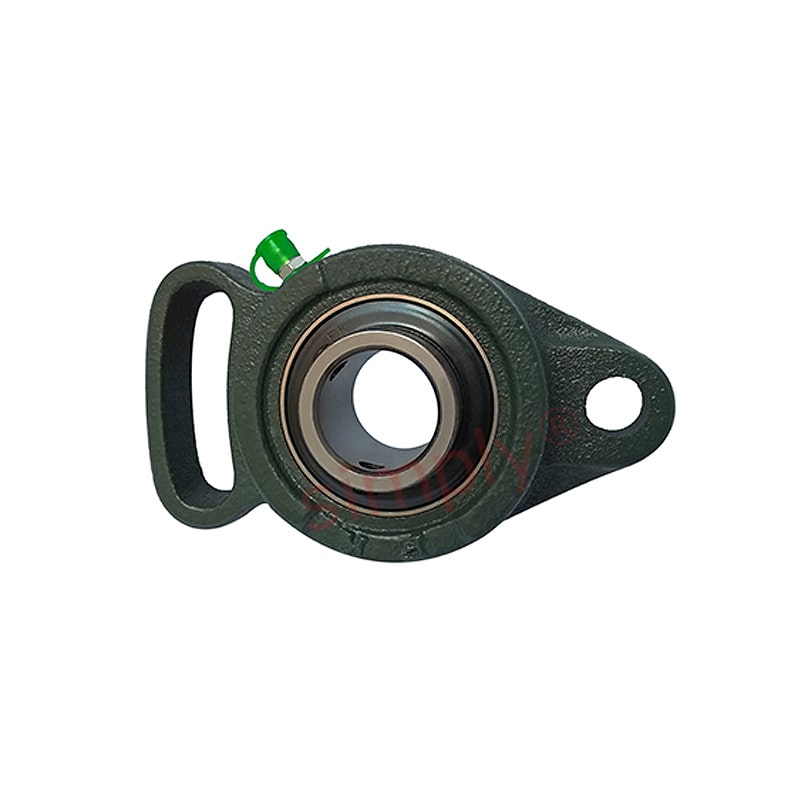

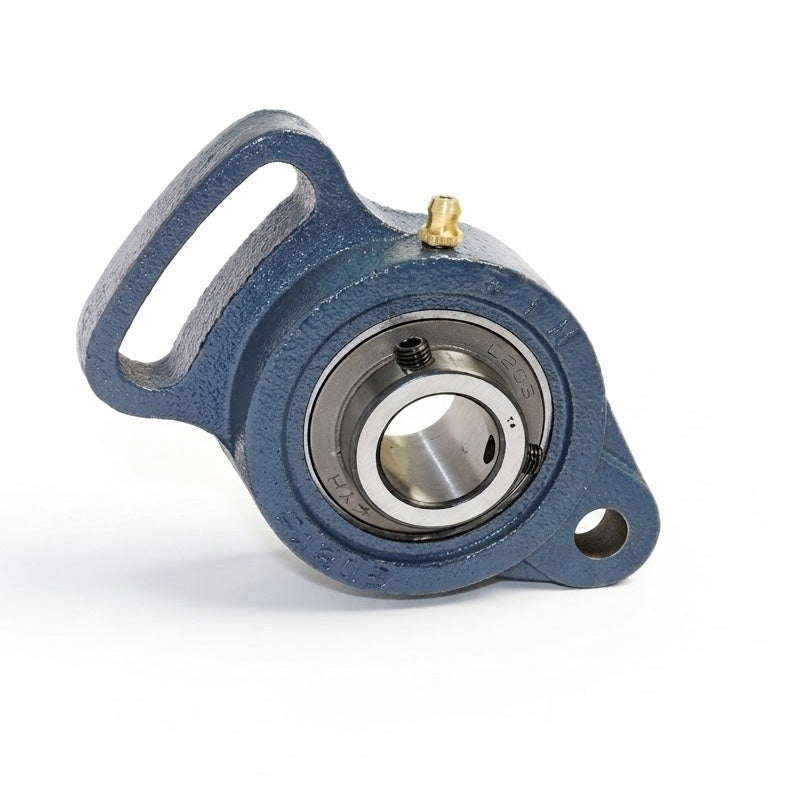

UCFA206-18 Imperial Cast Iron Adjustable Flange Unit with 1-1/8 inch Insert
- Regular price
- $21.79 ex VAT
- Sale price
- $21.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$19.39
19+
$18.30
29+
$18.09
39+
$17.87
49+
$17.65
74+
$17.43
99+
$16.34
199+
$16.12
249+
$15.91
499+
$15.69
999+
$15.25
SKU:
UCFA206-18
UCFA206-18 Imperial Cast Iron Adjustable Flange Unit with 1-1/8 inch Insert
- Regular price
- $21.79 ex VAT
- Sale price
- $21.79
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-1/8 inch |
| a | = | 5-35/64 inch |
| e | = | 4-17/32 inch |
| i | = | 45/64 inch |
| g | = | 35/64 inch |
| l | = | 1-7/32 inch |
| s | = | 33/64 inch |
| b | = | 3-17/64 inch |
| z | = | 1-19/32 inch |
| f | = | 2-9/32 inch |
| c | = | 2-27/32 inch |
| B | = | 1.5 inch |
| n | = | 0.626 inch |
| Bolt size | = | 3/8 inch |
| Bearing no | = | UC206-18 |
| Housing no | = | FA206 |
| Weight | = | 0.97 kg |
