SKU: UCFA204-SNR

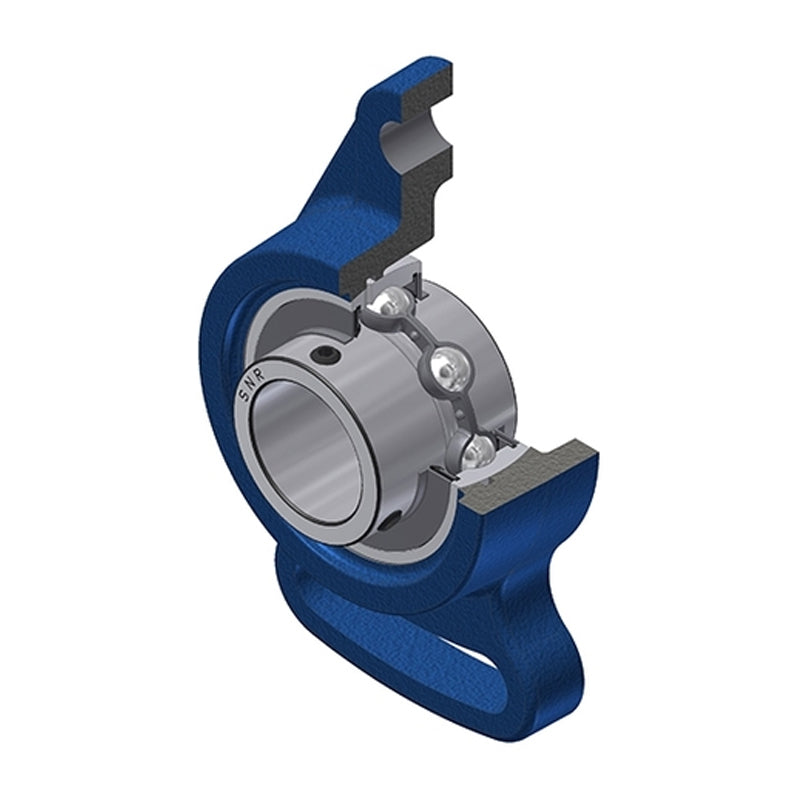

SNR UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$28.22
19+
$26.64
29+
$26.32
39+
$26.00
49+
$25.69
74+
$25.37
99+
$23.78
199+
$23.47
249+
$23.15
499+
$22.83
999+
$22.20
SKU:
UCFA204-SNR
SNR UCFA204 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
- Regular price
- $31.71 ex VAT
- Sale price
- $31.71
- Regular price
-
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

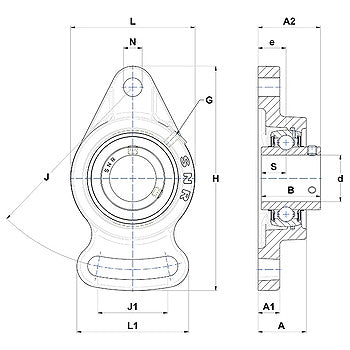

| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 25.5mm |
| A1 | = | 12mm |
| A2 | = | 33.3mm |
| B | = | 31mm |
| e | = | 15mm |
| H | = | 102mm |
| J | = | 78mm |
| J1 | = | 40mm |
| L | = | 60mm |
| L1 | = | 54mm |
| N | = | 10mm |
| S | = | 12.7mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.47 kg |
