SKU: UCF324-SNR

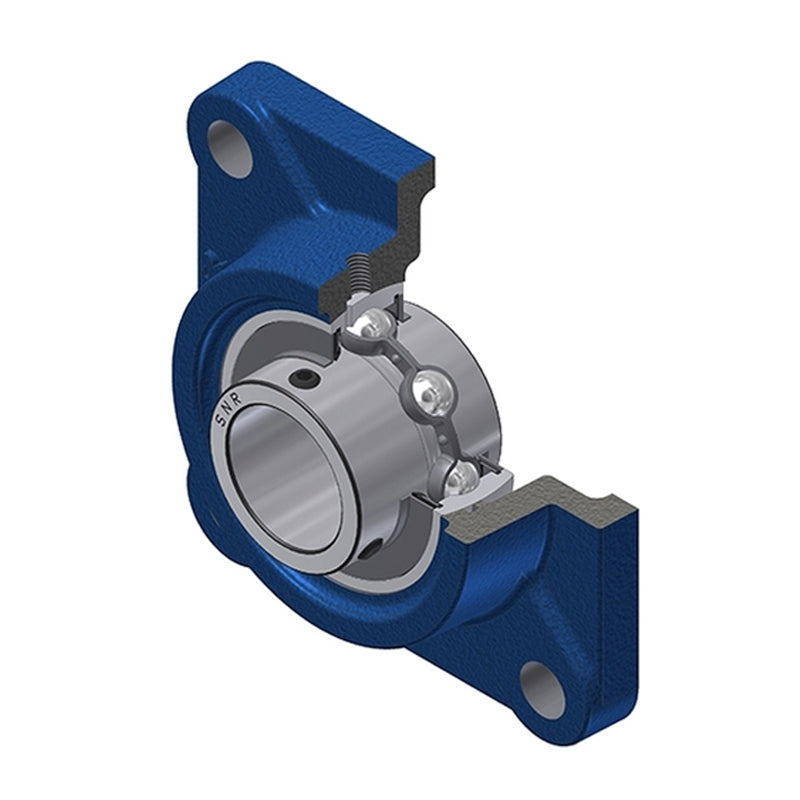

SNR UCF324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- $948.56 ex VAT
- Sale price
- $948.56
- Regular price
-
In stock
Quantity Price Breaks
10+
$844.22
19+
$796.79
29+
$787.30
39+
$777.82
49+
$768.33
74+
$758.85
99+
$711.42
199+
$701.93
249+
$692.45
499+
$682.96
999+
$663.99
SKU:
UCF324-SNR
SNR UCF324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- $948.56 ex VAT
- Sale price
- $948.56
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 120mm |
| A | = | 110mm |
| A1 | = | 40mm |
| A2 | = | 140mm |
| B | = | 126mm |
| e | = | 65mm |
| J | = | 290mm |
| L | = | 370mm |
| N | = | 41mm |
| S | = | 51mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 228 kN |
| Static load C0 | = | 208 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 75 Nm |
| Mass | = | 48.73 kg |
