SKU: UCF319-SNR

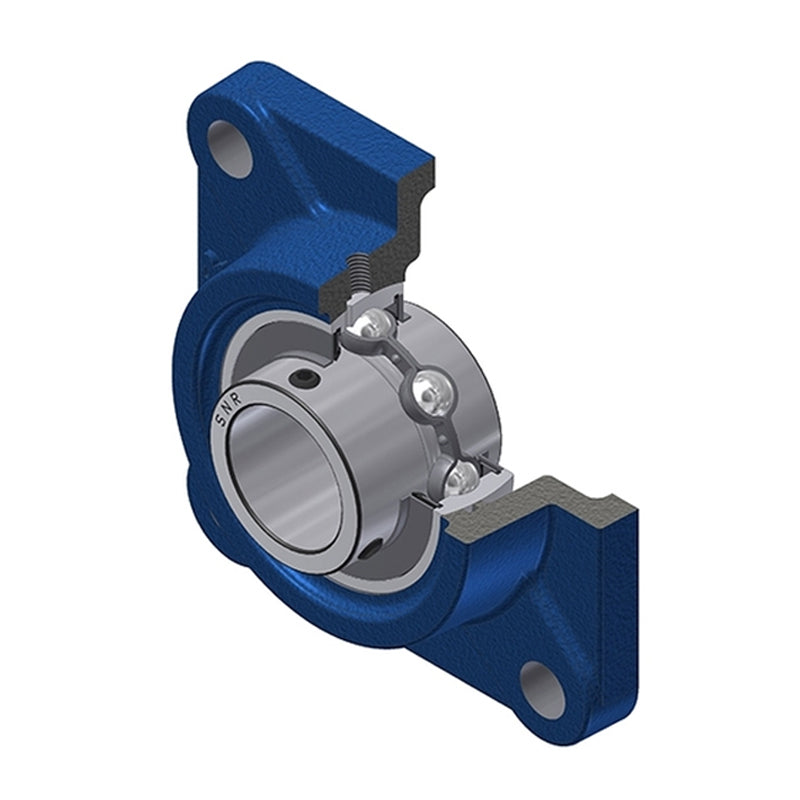

SNR UCF319 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
- Regular price
- $427.86 ex VAT
- Sale price
- $427.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$380.80
19+
$359.40
29+
$355.12
39+
$350.85
49+
$346.57
74+
$342.29
99+
$320.90
199+
$316.62
249+
$312.34
499+
$308.06
999+
$299.50
SKU:
UCF319-SNR
SNR UCF319 Metric Four Bolt Square Cast Iron Flange Housing with 95mm Bore Insert - Allow 2-3 Days
- Regular price
- $427.86 ex VAT
- Sale price
- $427.86
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 95mm |
| A | = | 94mm |
| A1 | = | 30mm |
| A2 | = | 121mm |
| B | = | 103mm |
| e | = | 59mm |
| J | = | 228mm |
| L | = | 290mm |
| N | = | 35mm |
| S | = | 41mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 156 kN |
| Static load C0 | = | 122 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 64 Nm |
| Mass | = | 21.16 kg |
