SKU: UCF307D1-NTN

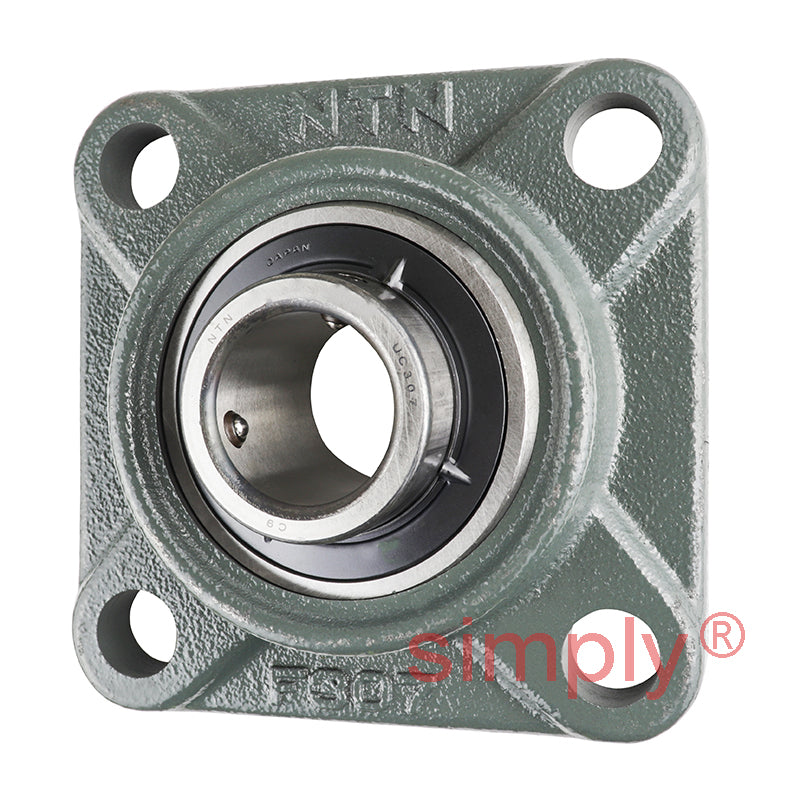

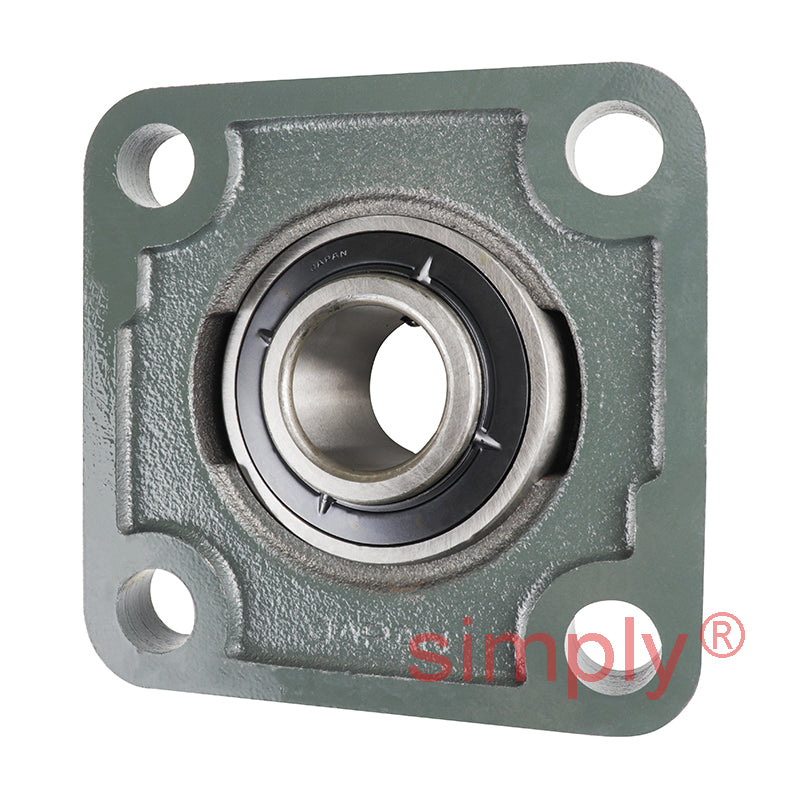

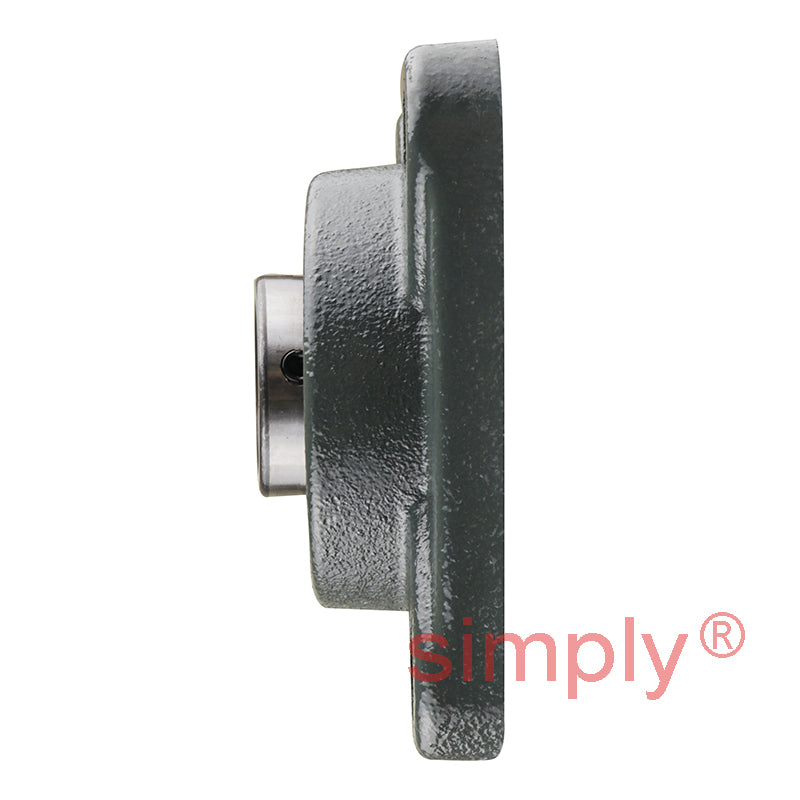

NTN UCF307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- $77.50 ex VAT
- Sale price
- $77.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$68.98
19+
$65.10
29+
$64.33
39+
$63.55
49+
$62.78
74+
$62.00
99+
$58.13
199+
$57.35
249+
$56.58
499+
$55.80
999+
$54.25
SKU:
UCF307D1-NTN
NTN UCF307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- $77.50 ex VAT
- Sale price
- $77.50
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

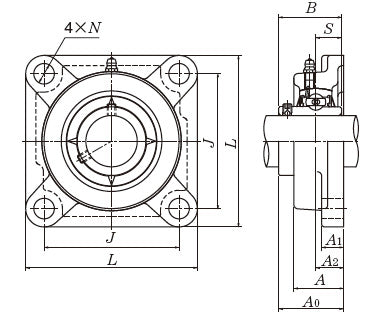

| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| L | = | 135mm |
| J | = | 100mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 20mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 16mm | |
| A | = | 36mm |
| N | = | 19mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 49mm | |
| B | = | 48mm |
| S | = | 19mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 37 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 19.1 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.47 kN | |
| --- | = | Unit information |
| Mass | = | 2.1 kg |
