SKU: UCF307-SNR

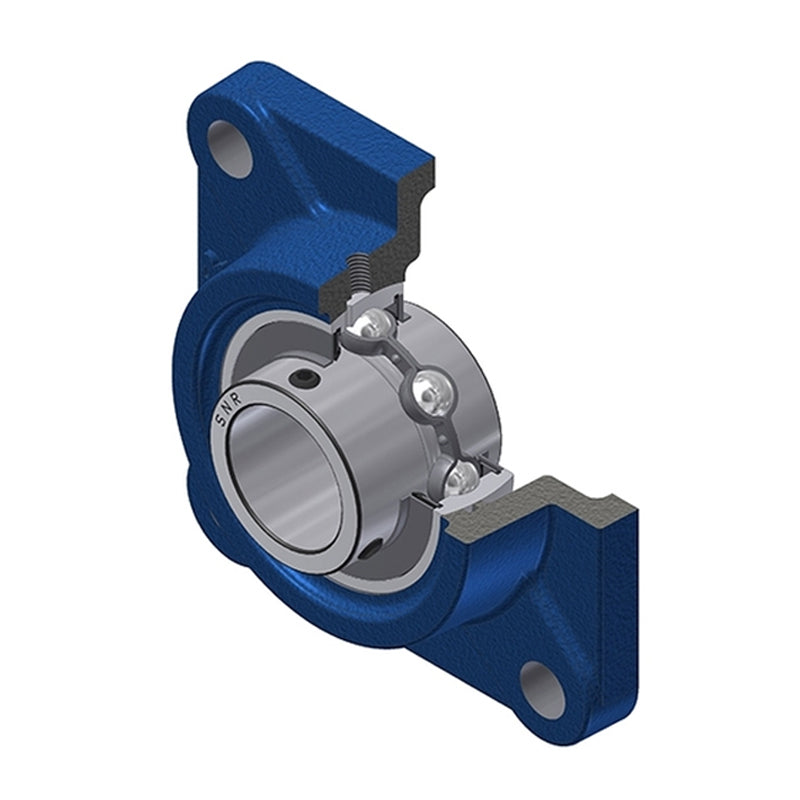

SNR UCF307 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $75.26 ex VAT
- Sale price
- $75.26
- Regular price
-
In stock
Quantity Price Breaks
10+
$66.98
19+
$63.22
29+
$62.47
39+
$61.71
49+
$60.96
74+
$60.21
99+
$56.45
199+
$55.69
249+
$54.94
499+
$54.19
999+
$52.68
SKU:
UCF307-SNR
SNR UCF307 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $75.26 ex VAT
- Sale price
- $75.26
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 36mm |
| A1 | = | 16mm |
| A2 | = | 49mm |
| B | = | 48mm |
| e | = | 20mm |
| J | = | 100mm |
| L | = | 135mm |
| N | = | 19mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 33.5 kN |
| Static load C0 | = | 19.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.97 kg |
