SKU: UCF306-SNR

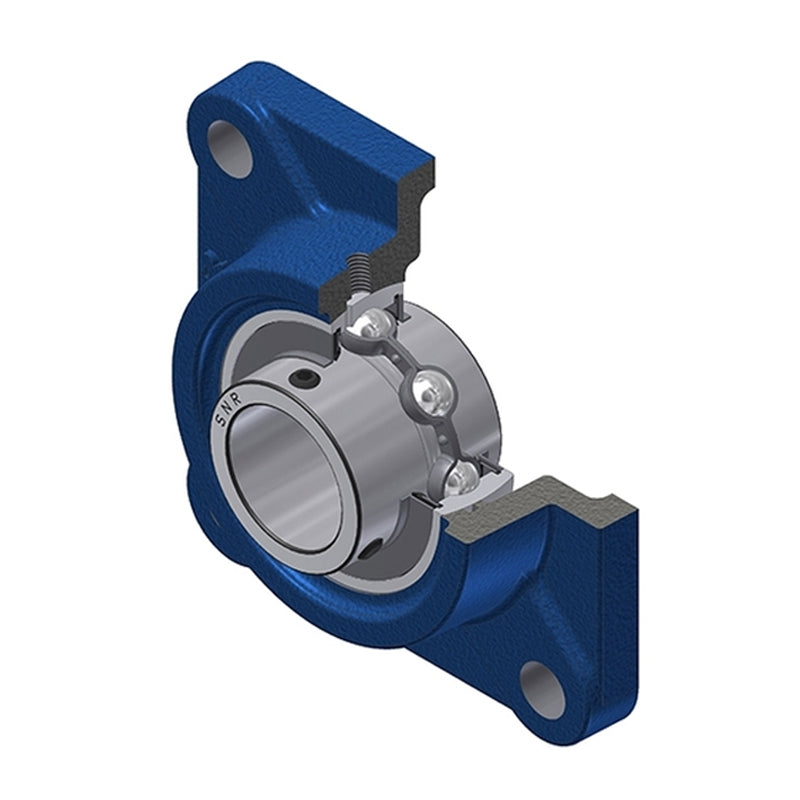

SNR UCF306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
In stock
Quantity Price Breaks
10+
$55.43
19+
$52.32
29+
$51.69
39+
$51.07
49+
$50.45
74+
$49.82
99+
$46.71
199+
$46.09
249+
$45.46
499+
$44.84
999+
$43.60
SKU:
UCF306-SNR
SNR UCF306 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 32mm |
| A1 | = | 15mm |
| A2 | = | 44mm |
| B | = | 43mm |
| e | = | 18mm |
| J | = | 95mm |
| L | = | 125mm |
| N | = | 16mm |
| S | = | 17mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 27 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.58 kg |
