SKU: UCF218-56-SNR

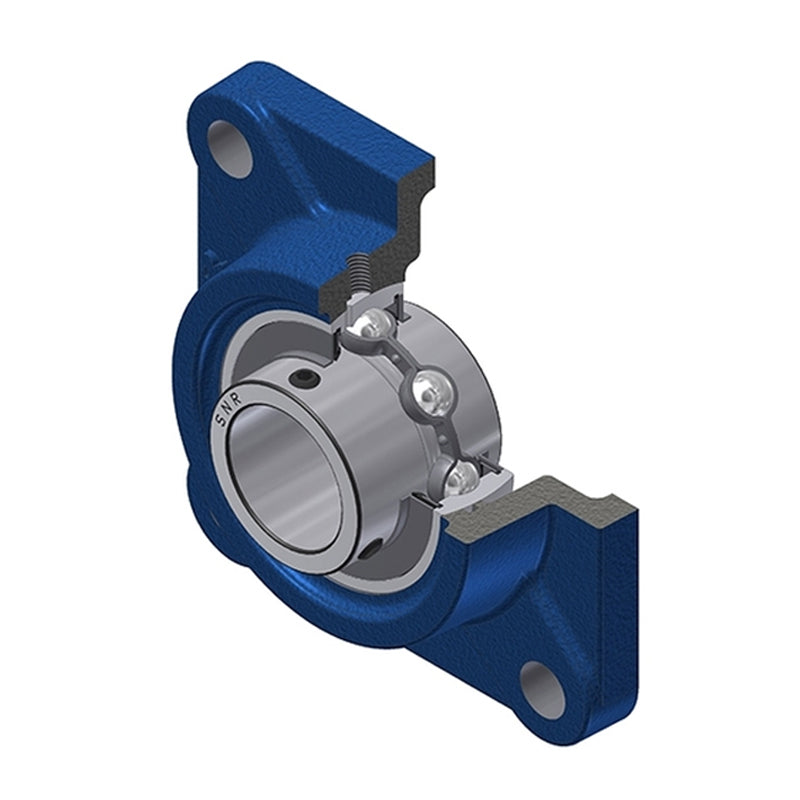

SNR UCF218-56 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $240.38 ex VAT
- Sale price
- $240.38
- Regular price
-
In stock
Quantity Price Breaks
10+
$213.94
19+
$201.92
29+
$199.52
39+
$197.11
49+
$194.71
74+
$192.30
99+
$180.29
199+
$177.88
249+
$175.48
499+
$173.07
999+
$168.27
SKU:
UCF218-56-SNR
SNR UCF218-56 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $240.38 ex VAT
- Sale price
- $240.38
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 3-1/2 inch |
| A | = | 68mm |
| A1 | = | 25mm |
| A2 | = | 96.3mm |
| B | = | 96mm |
| e | = | 40mm |
| J | = | 187mm |
| L | = | 235mm |
| N | = | 23mm |
| S | = | 39.7mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 96 kN |
| Static load C0 | = | 71.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33.9 Nm |
| Mass | = | 11.39 kg |
