SKU: UCF215-47-SNR

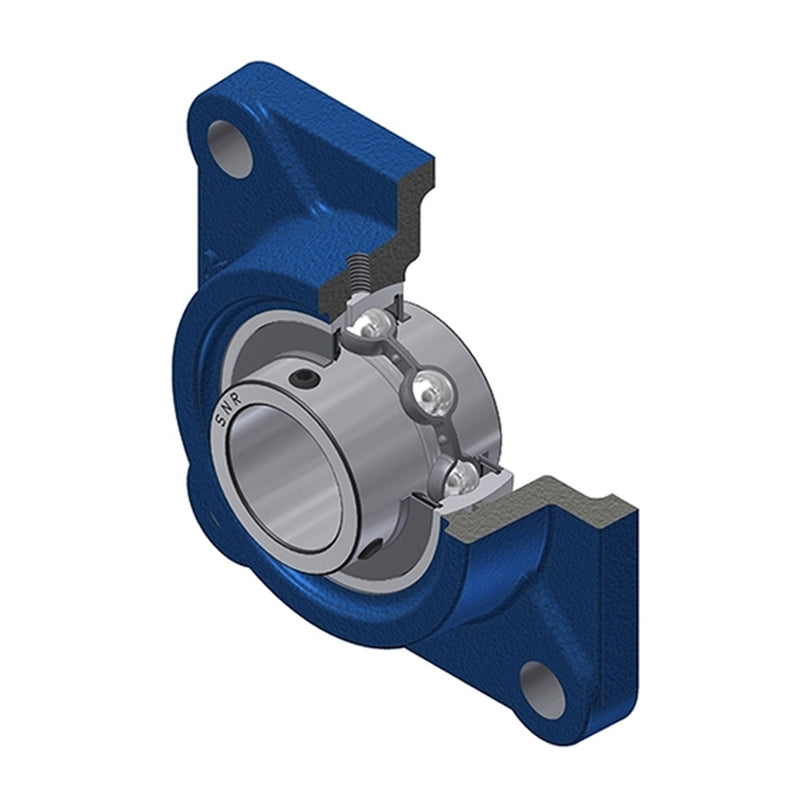

SNR UCF215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $138.40 ex VAT
- Sale price
- $138.40
- Regular price
-
In stock
Quantity Price Breaks
10+
$123.18
19+
$116.26
29+
$114.87
39+
$113.49
49+
$112.10
74+
$110.72
99+
$103.80
199+
$102.42
249+
$101.03
499+
$99.65
999+
$96.88
SKU:
UCF215-47-SNR
SNR UCF215-47 Imperial Four Bolt Square Cast Iron Flange Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $138.40 ex VAT
- Sale price
- $138.40
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 2-15/16 inch |
| A | = | 56mm |
| A1 | = | 22mm |
| A2 | = | 78.5mm |
| B | = | 77.8mm |
| e | = | 34mm |
| J | = | 159mm |
| L | = | 200mm |
| N | = | 19mm |
| S | = | 33.3mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 66 kN |
| Static load C0 | = | 49.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 27.1 Nm |
| Mass | = | 5.83 kg |
