SKU: UCF212N-SNR
SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $93.86 ex VAT
- Sale price
- $93.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$83.54
19+
$78.84
29+
$77.90
39+
$76.97
49+
$76.03
74+
$75.09
99+
$70.40
199+
$69.46
249+
$68.52
499+
$67.58
999+
$65.70
SKU:
UCF212N-SNR
SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $93.86 ex VAT
- Sale price
- $93.86
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

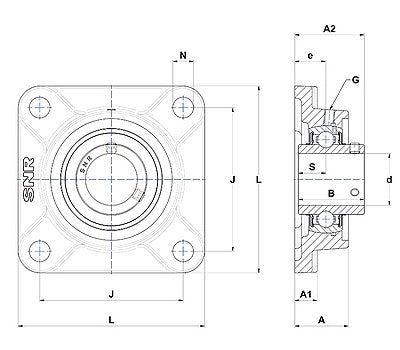

| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 48mm |
| A1 | = | 18mm |
| A2 | = | 68.7mm |
| B | = | 65.1mm |
| e | = | 29mm |
| J | = | 143mm |
| L | = | 175mm |
| N | = | 19mm |
| S | = | 25.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.36 kg |
