SKU: UCF210NAGR-SNR

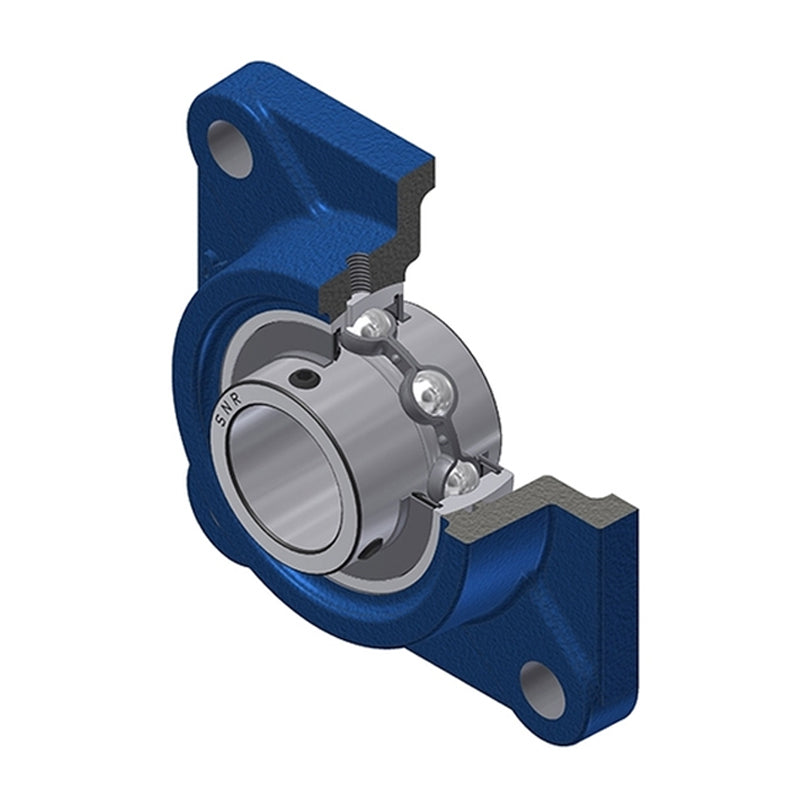

SNR UCF210NAGR Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $83.25 ex VAT
- Sale price
- $83.25
- Regular price
-
In stock
Quantity Price Breaks
10+
$74.09
19+
$69.93
29+
$69.10
39+
$68.27
49+
$67.43
74+
$66.60
99+
$62.44
199+
$61.61
249+
$60.77
499+
$59.94
999+
$58.28
SKU:
UCF210NAGR-SNR
SNR UCF210NAGR Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $83.25 ex VAT
- Sale price
- $83.25
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 16mm |
| A2 | = | 54.6mm |
| B | = | 51.6mm |
| e | = | 22mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 16mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.5 kg |
