SKU: UCF209L3-SNR

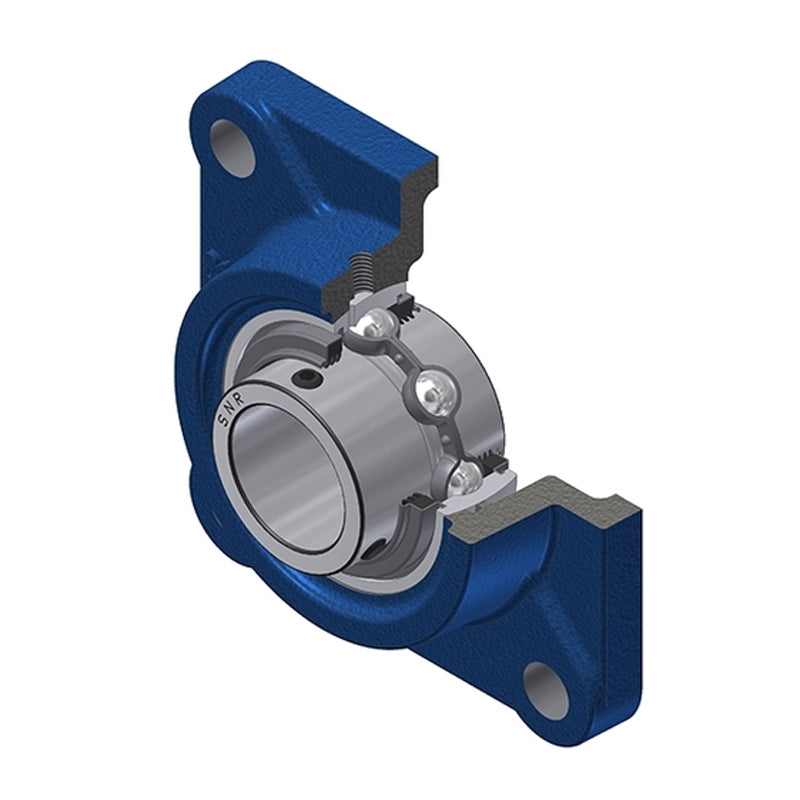

SNR UCF209L3 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
- Regular price
- $94.06 ex VAT
- Sale price
- $94.06
- Regular price
-
In stock
Quantity Price Breaks
10+
$83.71
19+
$79.01
29+
$78.07
39+
$77.13
49+
$76.19
74+
$75.25
99+
$70.55
199+
$69.60
249+
$68.66
499+
$67.72
999+
$65.84
SKU:
UCF209L3-SNR
SNR UCF209L3 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
- Regular price
- $94.06 ex VAT
- Sale price
- $94.06
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

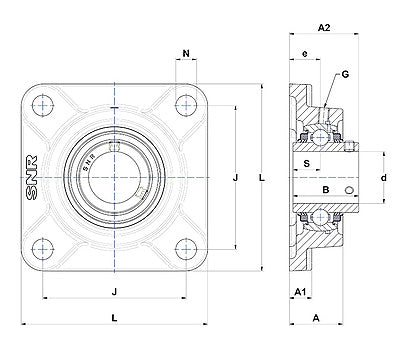

| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 38mm |
| A1 | = | 16mm |
| A2 | = | 52.2mm |
| B | = | 49.2mm |
| e | = | 22mm |
| J | = | 105mm |
| L | = | 137mm |
| N | = | 16mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.12 kg |
