SKU: UCF206CC-SNR

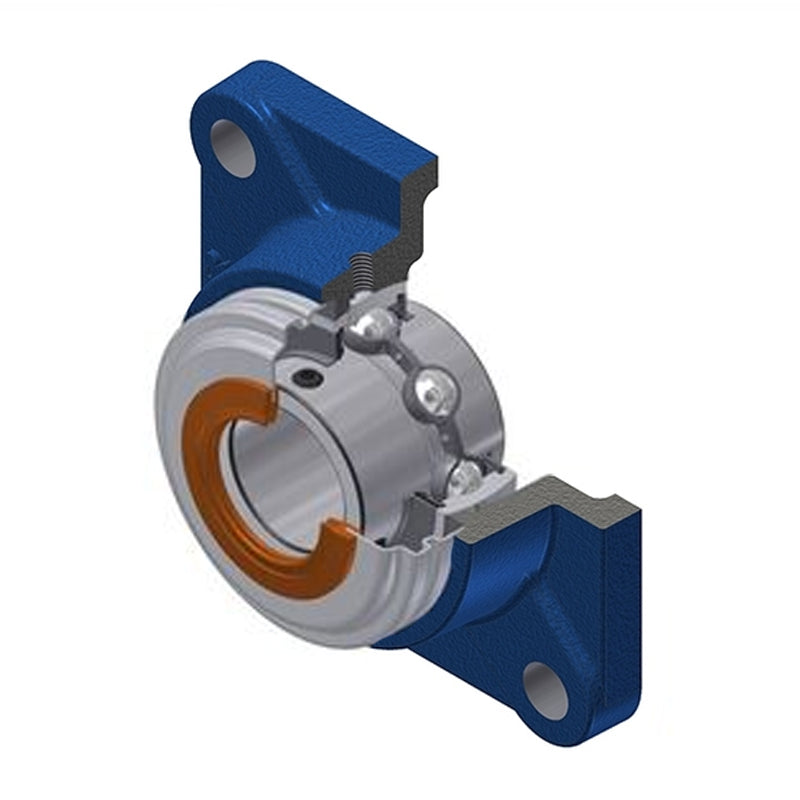

SNR UCF206CC Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- $57.08 ex VAT
- Sale price
- $57.08
- Regular price
-
In stock
Quantity Price Breaks
10+
$50.80
19+
$47.95
29+
$47.38
39+
$46.81
49+
$46.23
74+
$45.66
99+
$42.81
199+
$42.24
249+
$41.67
499+
$41.10
999+
$39.96
SKU:
UCF206CC-SNR
SNR UCF206CC Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- $57.08 ex VAT
- Sale price
- $57.08
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 31mm |
| A1 | = | 13mm |
| A2 | = | 40.2mm |
| B | = | 38.1mm |
| e | = | 18mm |
| J | = | 83mm |
| L | = | 108mm |
| N | = | 12mm |
| S | = | 15.9mm |
| Dz | = | 70mm |
| Z | = | 44.2mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.11 kg |
