SKU: UCF.209-KOYO
Koyo UCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
In stock
Quantity Price Breaks
10+
$55.43
19+
$52.32
29+
$51.69
39+
$51.07
49+
$50.45
74+
$49.82
99+
$46.71
199+
$46.09
249+
$45.46
499+
$44.84
999+
$43.60
SKU:
UCF.209-KOYO
Koyo UCF209 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert
- Regular price
- $62.28 ex VAT
- Sale price
- $62.28
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |

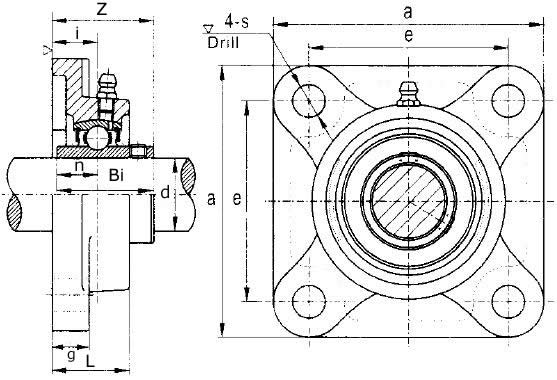

Technical
| d | = | 45mm |
| a | = | 137mm |
| e | = | 105mm |
| i | = | 22mm |
| g | = | 18mm |
| L | = | 38mm |
| S | = | 16mm |
| Z | = | 52.2mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Bolt Size | = | M14 |
| Weight | = | 2.3 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
