SKU: UCEHE207-SNR

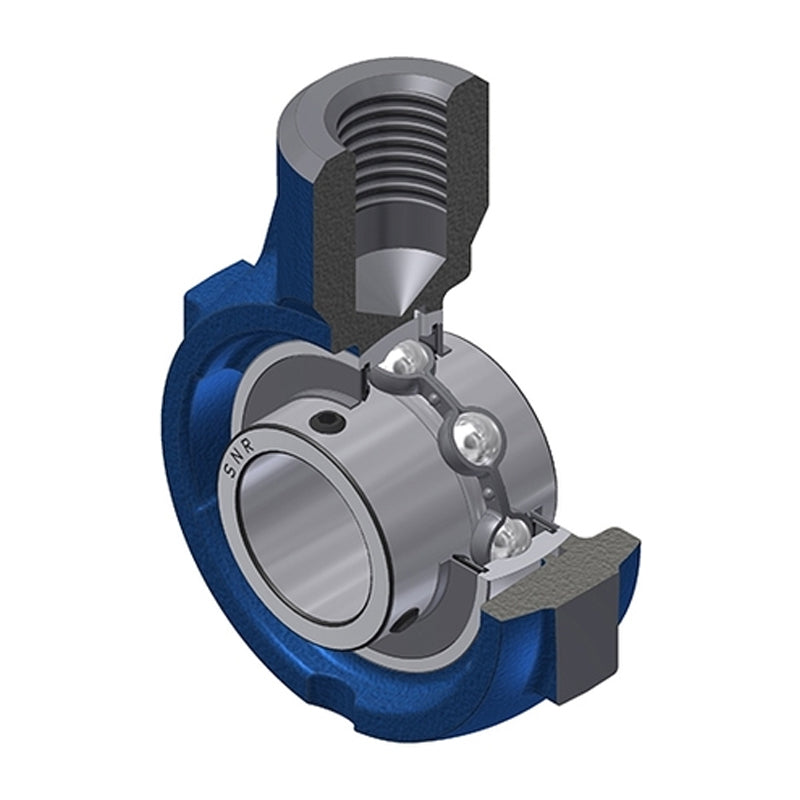

SNR UCEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $54.49 ex VAT
- Sale price
- $54.49
- Regular price
-
In stock
Quantity Price Breaks
10+
$48.50
19+
$45.77
29+
$45.23
39+
$44.68
49+
$44.14
74+
$43.59
99+
$40.87
199+
$40.32
249+
$39.78
499+
$39.23
999+
$38.14
SKU:
UCEHE207-SNR
SNR UCEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- $54.49 ex VAT
- Sale price
- $54.49
- Regular price
-
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 32mm |
| A2 | = | 40mm |
| B | = | 42.9mm |
| E | = | 24mm |
| H | = | 90mm |
| L | = | 122mm |
| L1 | = | 76mm |
| L3 | = | 40mm |
| S | = | 17.5mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.17 kg |
