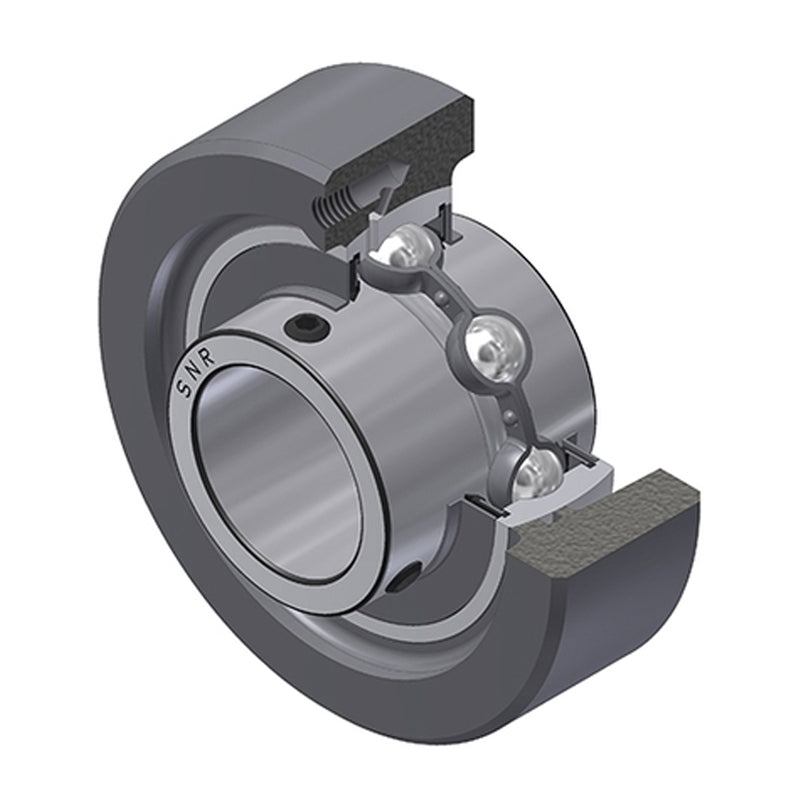

SNR UCC208 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia - Allow 2-3 Days

SKU: UCC208-SNR

SNR UCC208 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia - Allow 2-3 Days

$51.90 ex VAT
$51.90
ex VAT
In stock

Quantity Price Breaks

10+ $46.19
19+ $43.60
29+ $43.08
39+ $42.56
49+ $42.04
74+ $41.52
99+ $38.93
199+ $38.41
249+ $37.89
499+ $37.37
999+ $36.33
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SNR UCC208 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia - Allow 2-3 Days
SKU: UCC208-SNR

SNR UCC208 Metric Cast Iron Cartridge Unit with 40mm Bore Insert 30mm Outside Dia - Allow 2-3 Days

$51.90 ex VAT
$51.90
ex VAT

Description

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

--- = Dimensions
Shaft diameter d = 40mm
A = 30mm
A3 = 1.5mm
B = 49.2mm
H = 100mm
S = 19mm
G = M6x1
--- = Load rating
Dynamic load C = 29.6 kN
Static load C0 = 18.2 kN
--- = Unit information
Operating temperature min. = -20&
deg = C
Operating temperature max. = 100&
deg = C
Mass = 1.24 kg
