SKU: UC207G2L3-SNR

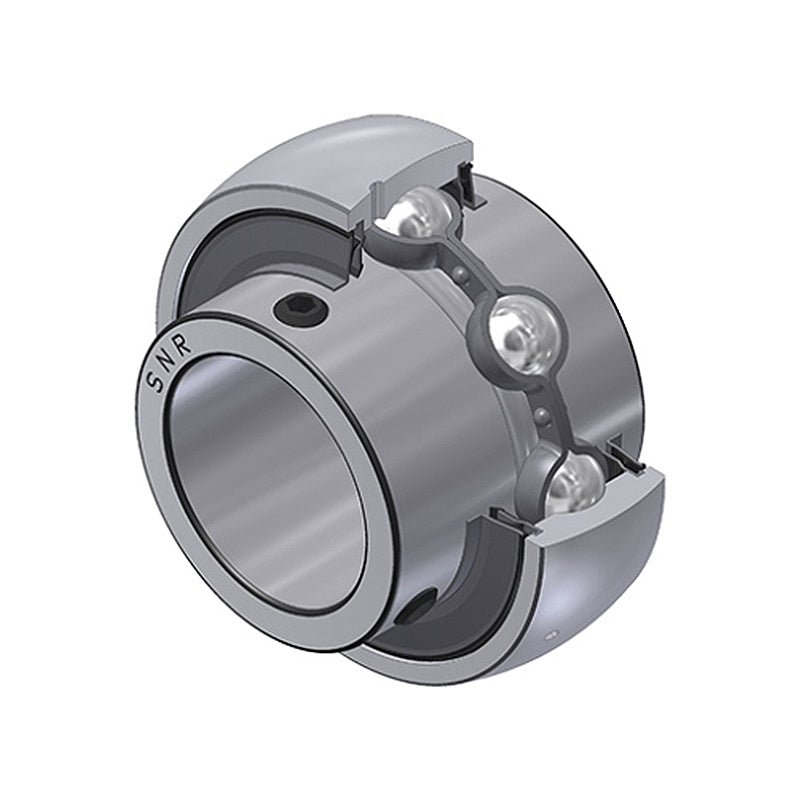

SNR UC207G2L3 Metric Full Width Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws and Triple Lip Seals
- Regular price
- $32.51 ex VAT
- Sale price
- $32.51
- Regular price
-
Quantity Price Breaks
SNR UC207G2L3 Metric Full Width Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws and Triple Lip Seals
- Regular price
- $32.51 ex VAT
- Sale price
- $32.51
- Regular price
-
Description
SNR UC-L3 Full Width Spherical Outer Bearing Insert with Grub Screws and Triple Lip Seals: This bearing insert is designed for demanding environments, featuring triple lip seals on both sides of the insert to resist contamination in heavily dirt-contaminated settings. Each steel insert boasts a wide inner ring design and incorporates a zinc-coated sheet steel retainer over-molded with NBR, with an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for enhanced protection against mechanical impacts and particles. This insert is engineered to withstand medium to high rotation speeds, ensuring reliable performance in challenging conditions.
Benefits: High-quality brand, high-performance, triple lip sealed

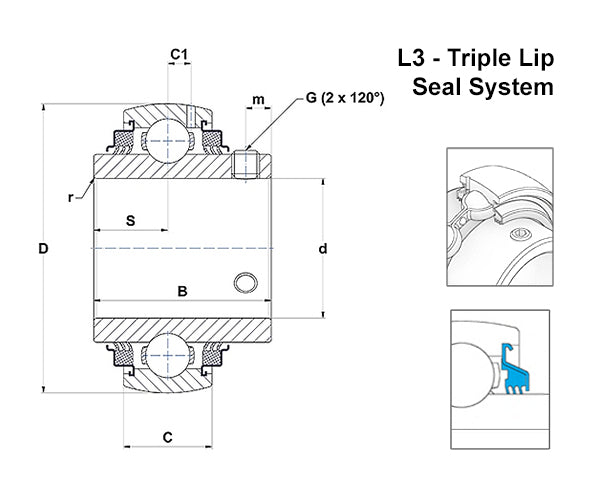

Technical
| d | = | 35mm |
| D | = | 72mm |
| C | = | 20mm |
| B | = | 42.9mm |
| S | = | 17.5mm |
| m | = | 6.5mm |
| C1 | = | 5.8mm |
| r min | = | 1.1mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 25.7kN |
| Static load rating C0 | = | 15.2kN |
| Weight | = | 0.5kg |
