SKU: UC.218-56.TS.CHAL

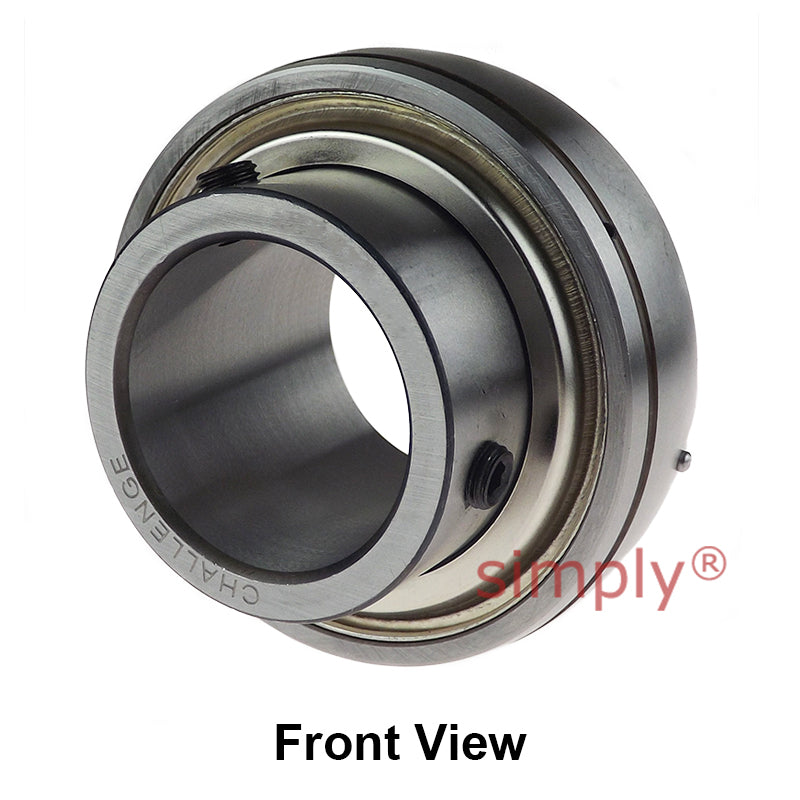

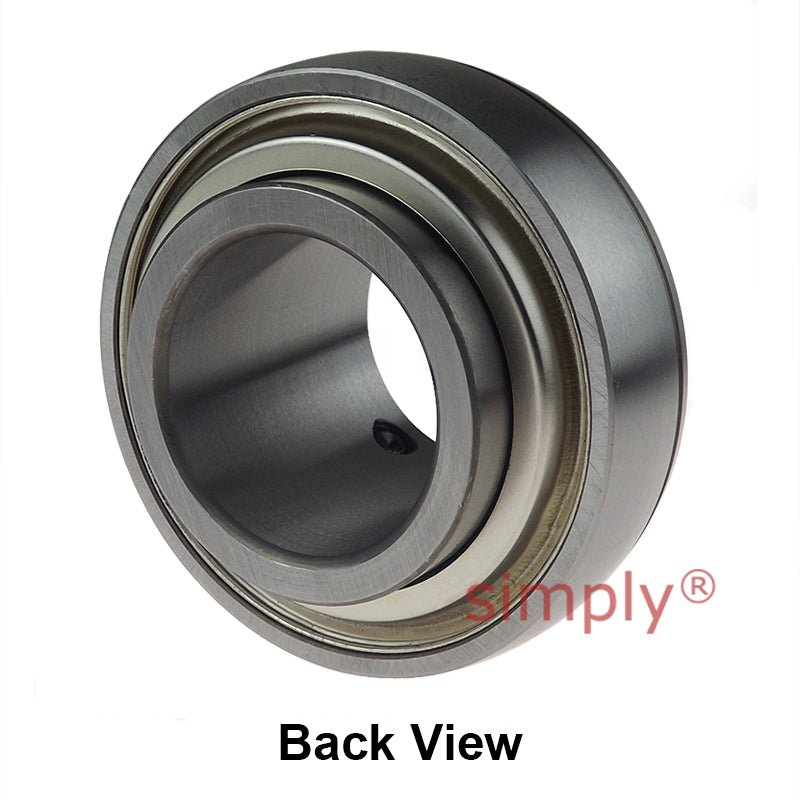

Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $451.07 ex VAT
- Sale price
- $451.07
- Regular price
-
In stock
Quantity Price Breaks
10+
$401.45
19+
$378.90
29+
$374.39
39+
$369.88
49+
$365.37
74+
$360.86
99+
$338.30
199+
$333.79
249+
$329.28
499+
$324.77
999+
$315.75
SKU:
UC.218-56.TS.CHAL
Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $451.07 ex VAT
- Sale price
- $451.07
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 3-1/2 inch |
| Outside Diameter D | = | 160mm |
| Overall Width Bi | = | 96mm |
| Inner Race Width Be | = | 37mm |
| Back of Bearing to Centre Line n | = | 39.7mm |
| Front of Bearing to Centre Line m | = | 56.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | 1/2 - 20UNF inch |
| Load Rating (Dynamic) | = | 7500kg |
| Load Rating (Static) | = | 6170kg |
| Max Speed | = | 950 rev/min |
| Grease Nipple Thread Size | = | M10 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
