SKU: UC.209-28.TS.CHAL

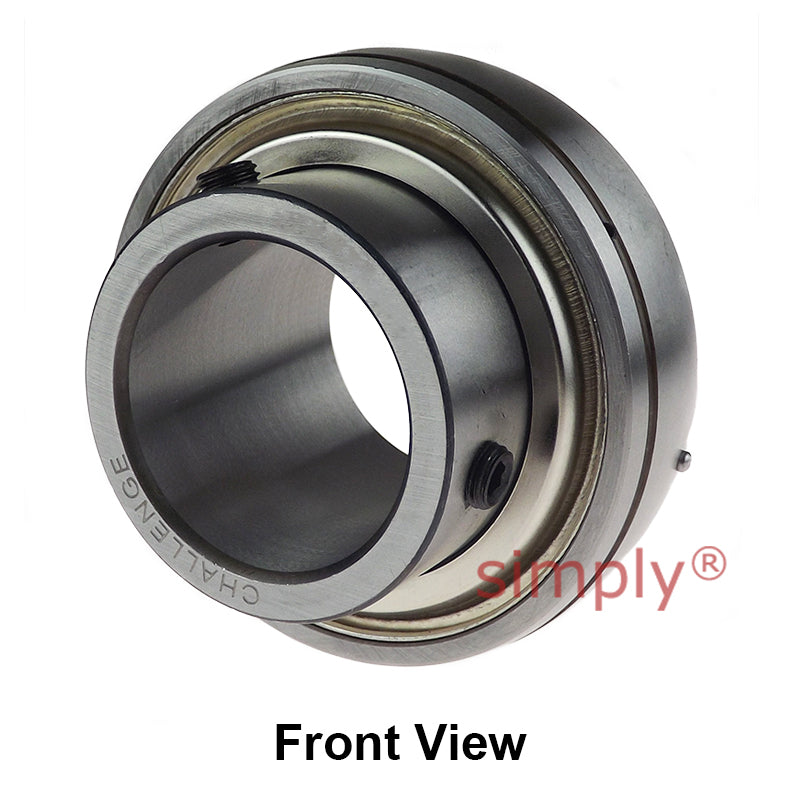

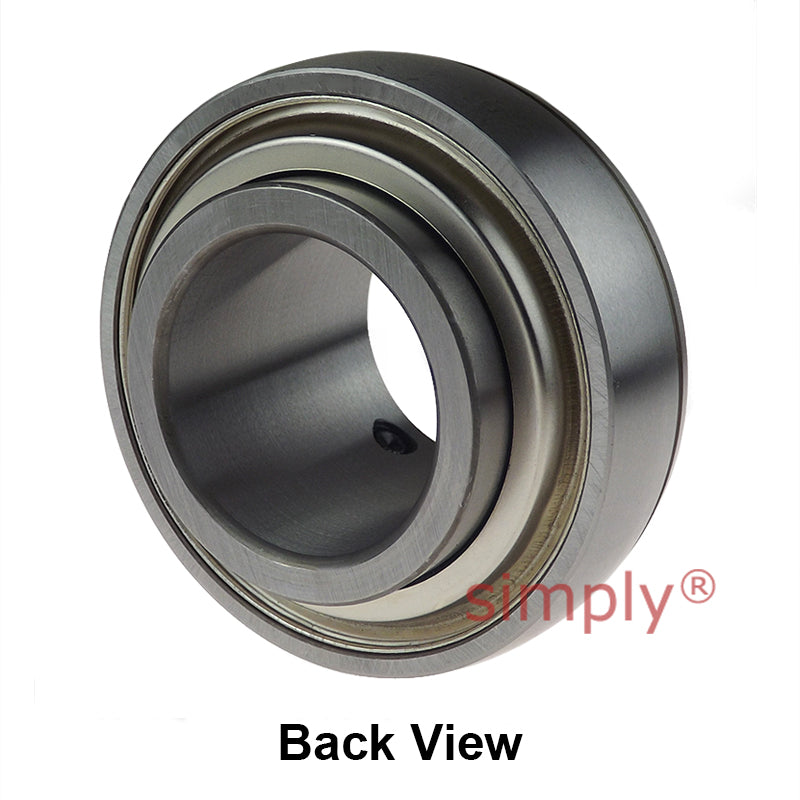

Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $39.80 ex VAT
- Sale price
- $39.80
- Regular price
-
In stock
Quantity Price Breaks
10+
$35.42
19+
$33.43
29+
$33.03
39+
$32.64
49+
$32.24
74+
$31.84
99+
$29.85
199+
$29.45
249+
$29.05
499+
$28.66
999+
$27.86
SKU:
UC.209-28.TS.CHAL
Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $39.80 ex VAT
- Sale price
- $39.80
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 1-3/4 inch |
| Outside Diameter D | = | 85mm |
| Overall Width Bi | = | 49.2mm |
| Inner Race Width Be | = | 22mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Front of Bearing to Centre Line m | = | 30.2mm |
| Dimension G | = | 8mm |
| Grub Screws x 2 | = | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 2560kg |
| Load Rating (Static) | = | 1810kg |
| Max Speed | = | 1900 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
