SKU: UC.208-24.TS.CHAL

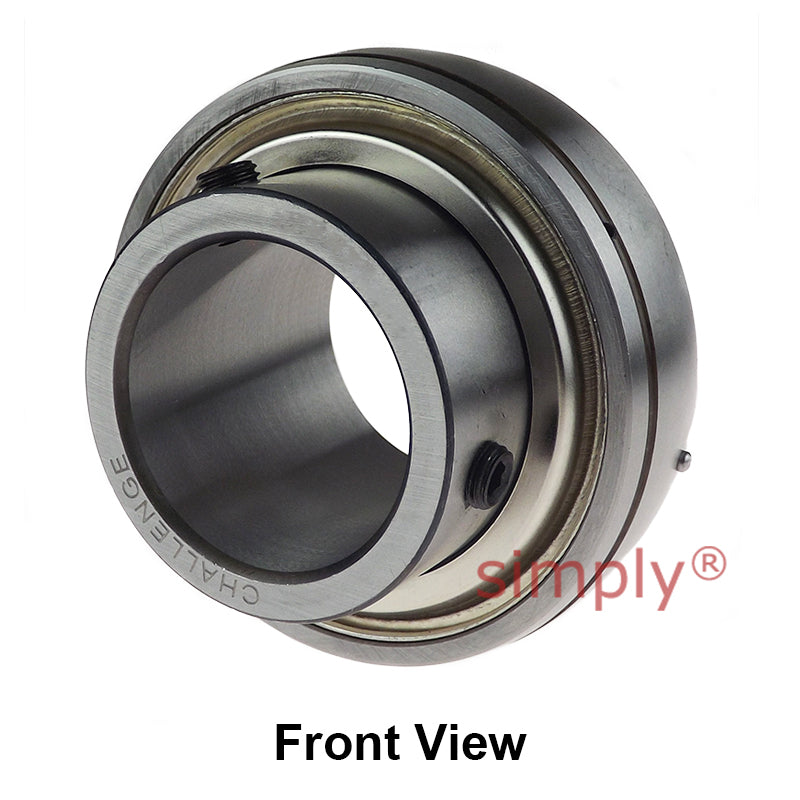

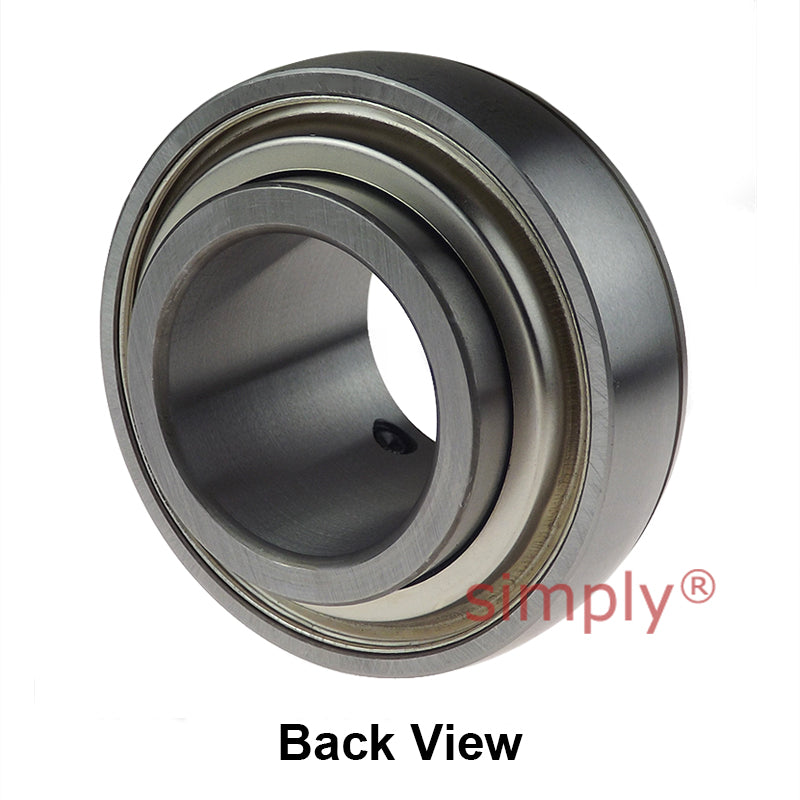

Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $33.46 ex VAT
- Sale price
- $33.46
- Regular price
-
In stock
Quantity Price Breaks
10+
$29.78
19+
$28.11
29+
$27.77
39+
$27.44
49+
$27.10
74+
$26.77
99+
$25.10
199+
$24.76
249+
$24.43
499+
$24.09
999+
$23.42
SKU:
UC.208-24.TS.CHAL
Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $33.46 ex VAT
- Sale price
- $33.46
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 1-1/2 inch |
| Outside Diameter D | = | 80mm |
| Overall Width Bi | = | 49.2mm |
| Inner Race Width Be | = | 21mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Front of Bearing to Centre Line m | = | 30.2mm |
| Dimension G | = | 8mm |
| Grub Screws x 2 | = | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 2560kg |
| Load Rating (Static) | = | 1810kg |
| Max Speed | = | 2200 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
