SKU: UC.206-20.TS.CHAL

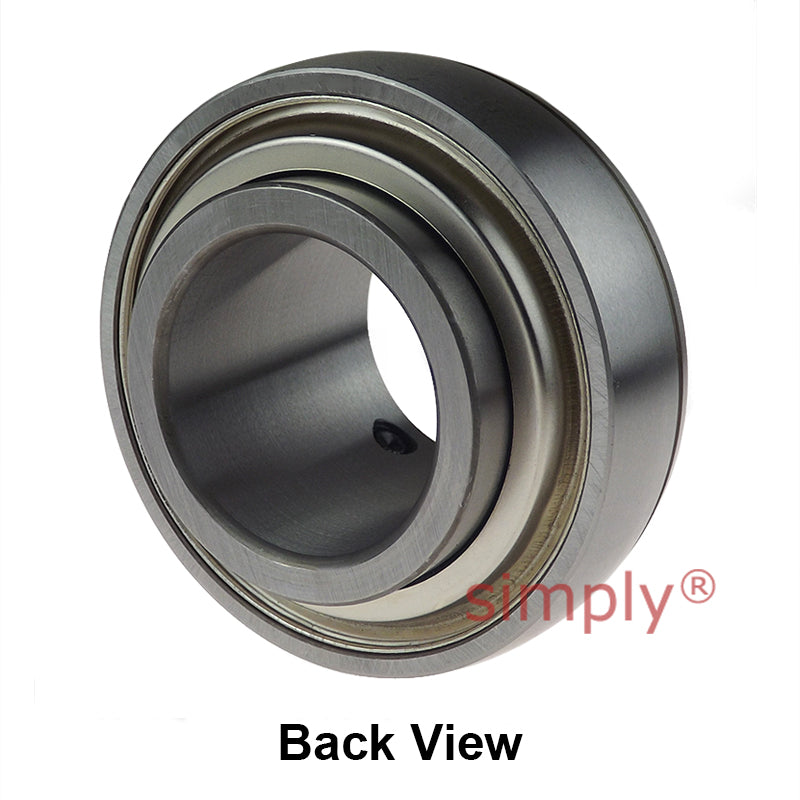

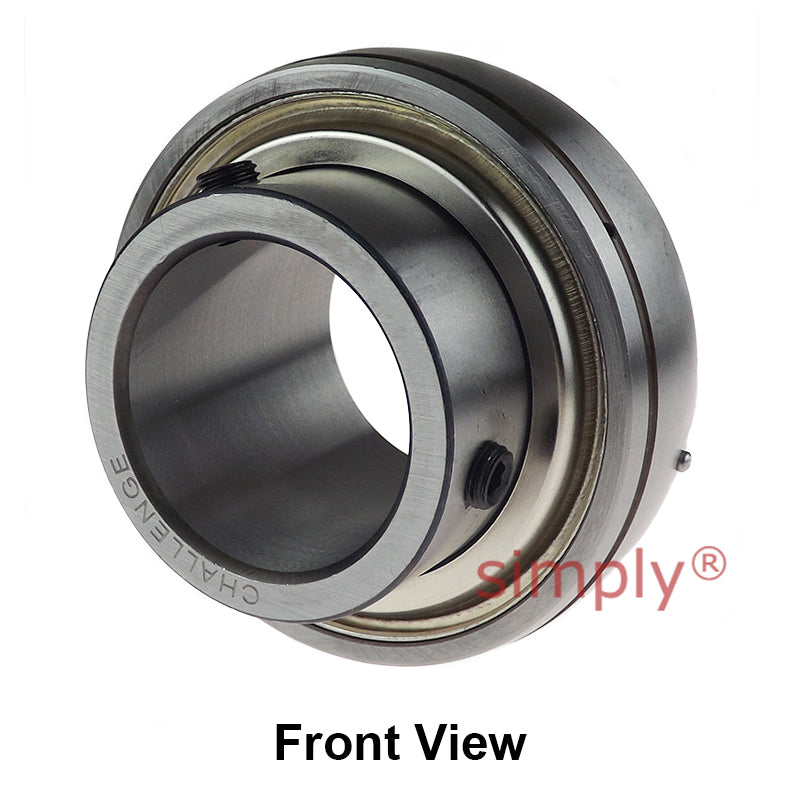

Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $22.55 ex VAT
- Sale price
- $22.55
- Regular price
-
In stock
Quantity Price Breaks
10+
$20.07
19+
$18.94
29+
$18.72
39+
$18.49
49+
$18.27
74+
$18.04
99+
$16.91
199+
$16.69
249+
$16.46
499+
$16.24
999+
$15.79
SKU:
UC.206-20.TS.CHAL
Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $22.55 ex VAT
- Sale price
- $22.55
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 1-1/4 inch |
| Outside Diameter D | = | 62mm |
| Overall Width Bi | = | 38.1mm |
| Inner Race Width Be | = | 19mm |
| Back of Bearing to Centre Line n | = | 15.9mm |
| Front of Bearing to Centre Line m | = | 22.2mm |
| Dimension G | = | 5mm |
| Grub Screws x 2 | = | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | = | 1520kg |
| Load Rating (Static) | = | 1020kg |
| Max Speed | = | 2800 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
