SKU: TBS-S-08B-76
76 Tooth 08B Simplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
- Regular price
- $119.35 ex VAT
- Sale price
- $119.35
- Regular price
-
In stock
Quantity Price Breaks
10+
$106.22
19+
$100.25
29+
$99.06
39+
$97.87
49+
$96.67
74+
$95.48
99+
$89.51
199+
$88.32
249+
$87.13
499+
$85.93
999+
$83.55
SKU:
TBS-S-08B-76
76 Tooth 08B Simplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
- Regular price
- $119.35 ex VAT
- Sale price
- $119.35
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

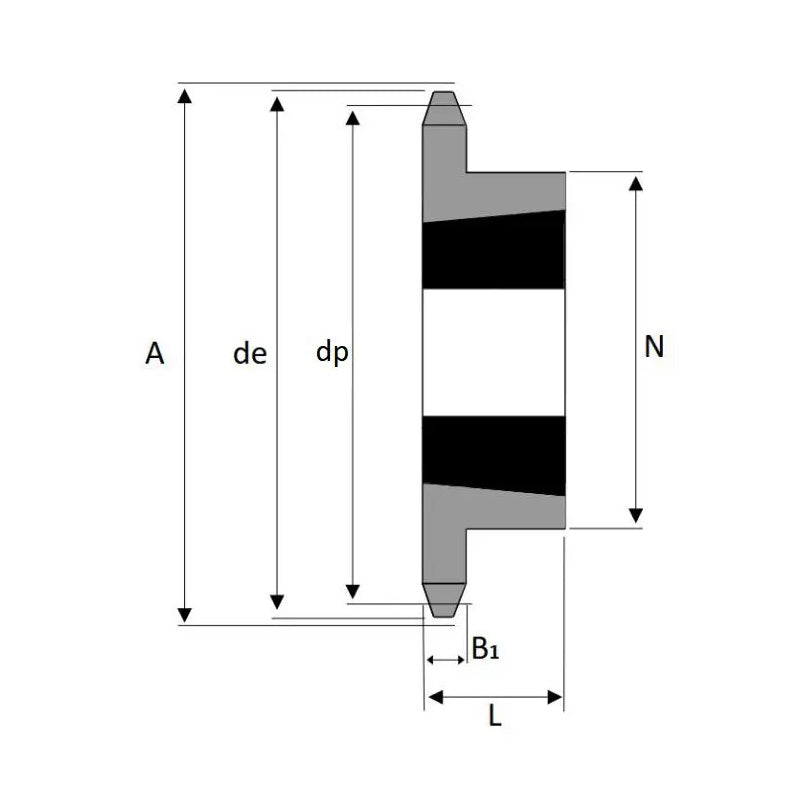

Technical
| Tooth Radius r3 | = | 13mm |
| Chamfer c | = | 1.3mm |
| Tooth Width b1 | = | 7mm |
| Tooth Width B1 | = | 7.2mm |
| Tooth Width B2 | = | 21mm |
| Tooth Width B3 | = | 34.9mm |
| Pitch | = | 12.7mm |
| Width Between Inner | = | 7.75mm |
| Roller Diameter | = | 8.51mm |
| No. of Teeth | = | 76 |
| Outer Diameter de | = | 313.3mm |
| Pitch Diameter dp | = | 307.33mm |
| Hub Diameter dm | = | 100mm |
| Length Through Bore A | = | 32mm |
| Reference | = | 41-76 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2012+tapered+locking+bush> | = | 2012 Click Here< |
| /a> | = |
