SKU: SIL17C-CDX

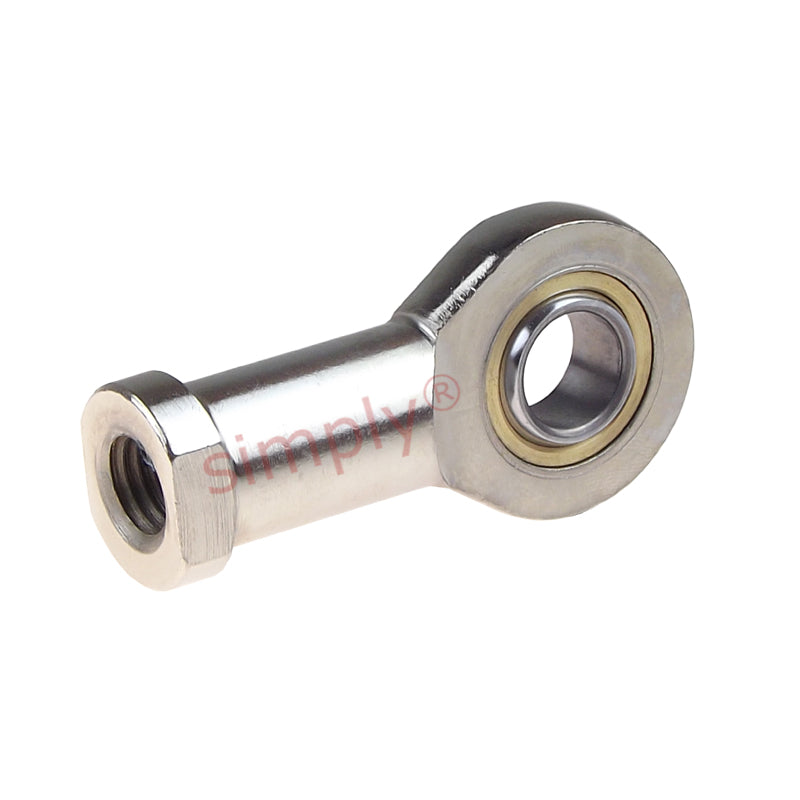

Codex SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
- Regular price
- $35.64 ex VAT
- Sale price
- $35.64
- Regular price
-
In stock
Quantity Price Breaks
10
$31.72
19
$29.94
29
$29.58
39
$29.22
49
$28.87
74
$28.51
99
$26.73
199
$26.37
249
$26.02
499
$25.66
999
$24.95
SKU:
SIL17C-CDX
Codex SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
- Regular price
- $35.64 ex VAT
- Sale price
- $35.64
- Regular price
-
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Technical
| d | = | 17mm |
| d2 max | = | 47mm |
| G | = | M16 |
| B | = | 14mm |
| C1 max | = | 11.5mm |
| h1 | = | 67mm |
| Max misalignment angle | = | 10 degrees |
| Dynamic load | = | 22.4 kN |
| Static load | = | 46.5 kN |
| dk | = | 25mm |
| d4 | = | 25mm |
| l3 min | = | 24mm |
| l4 max | = | 92mm |
| l5 | = | 15mm |
| l7 min | = | 22mm |
| r1 min | = | 0.3mm |
| w h14 | = | 22mm |
| Weight | = | 0.25 kg |
