SKU: SIKAC6M-FLU

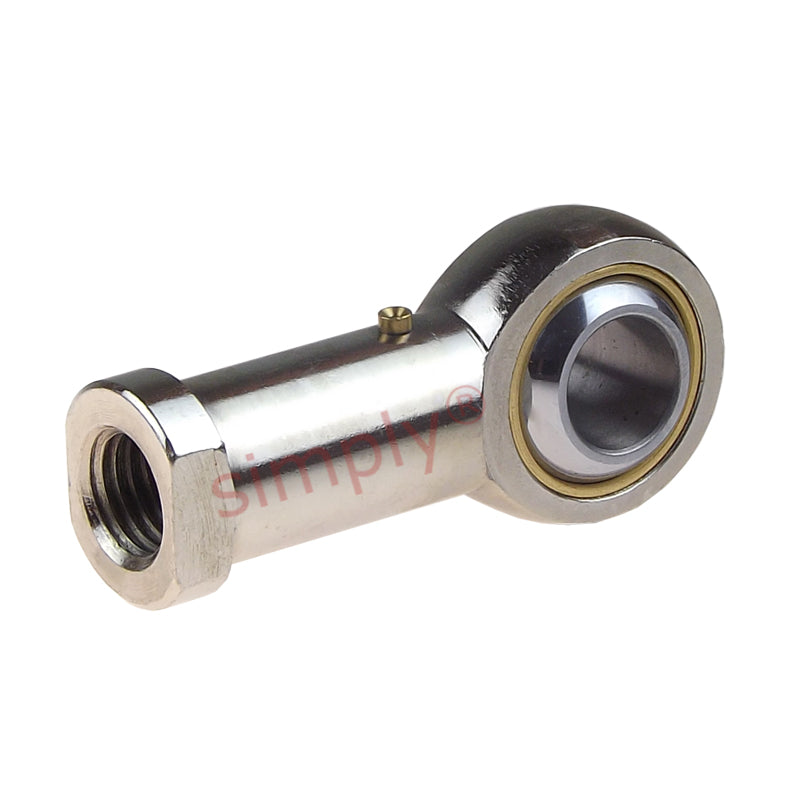

Fluro SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- $16.11 ex VAT
- Sale price
- $16.11
- Regular price
-
Not in stock
Quantity Price Breaks
10
$14.34
19
$13.53
29
$13.37
39
$13.21
49
$13.05
74
$12.89
99
$12.08
199
$11.92
249
$11.76
499
$11.60
999
$11.28
SKU:
SIKAC6M-FLU
Fluro SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
- Regular price
- $16.11 ex VAT
- Sale price
- $16.11
- Regular price
-
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| Bore Size D | = | 6mm |
| B | = | 9mm |
| M | = | 6.75mm |
| A | = | 20mm |
| F | = | 30mm |
| L | = | 40mm |
| K | = | 13mm |
| J | = | 10mm |
| O | = | 8.9mm |
| SW | = | 11mm |
| Thread Size G | = | M6 |
| GL | = | 12mm |
| Static Load Co | = | 8.9kN |
| Dynamic Load | = | 4.3kN |
| Limiting Speed | = | 1500rev/min |
| Approx weight | = | 0.027kg |
