SKU: SER.209-28

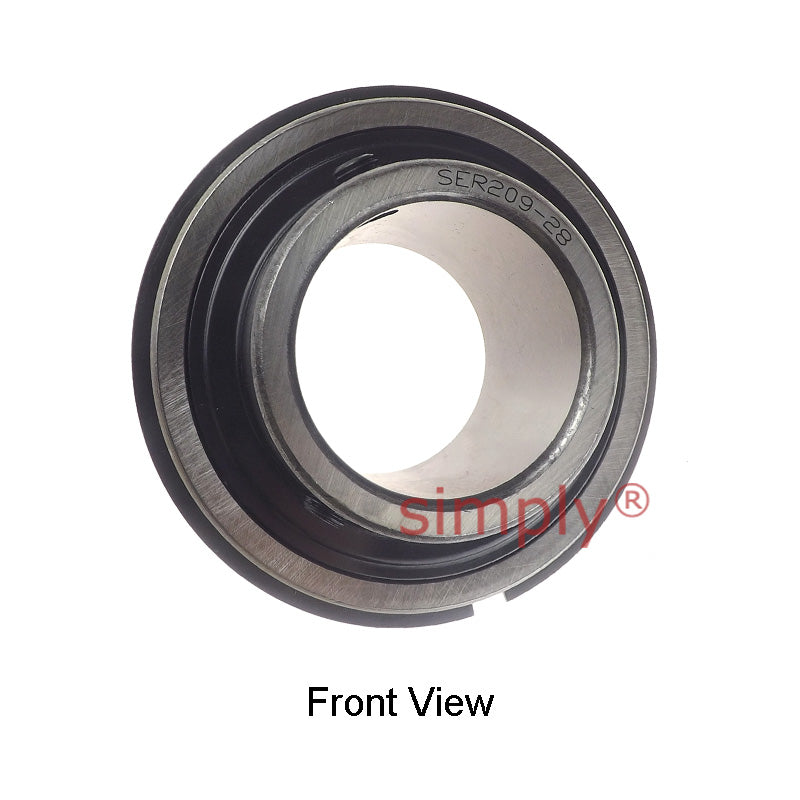

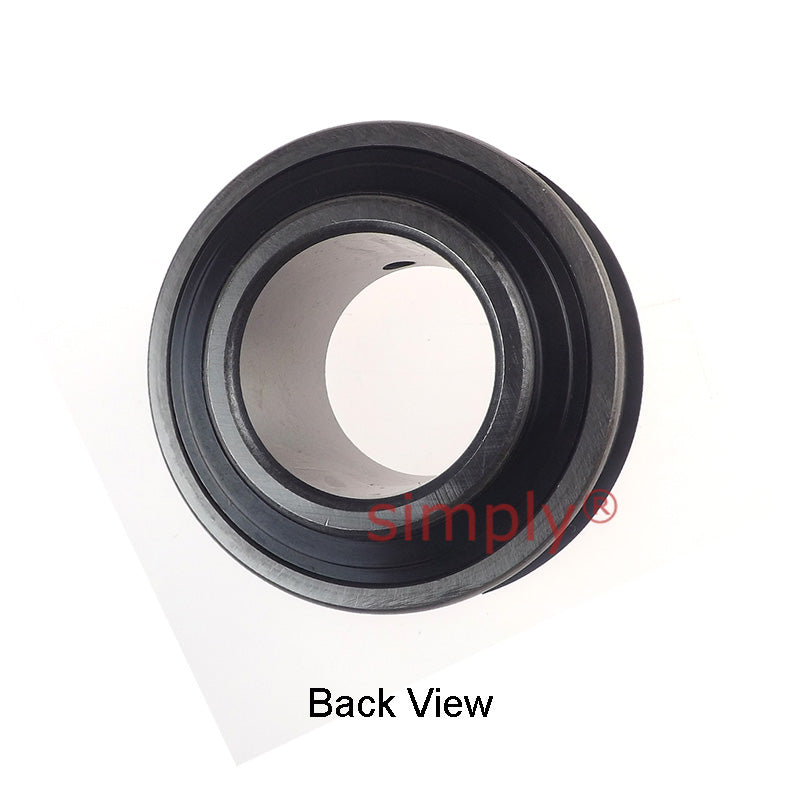

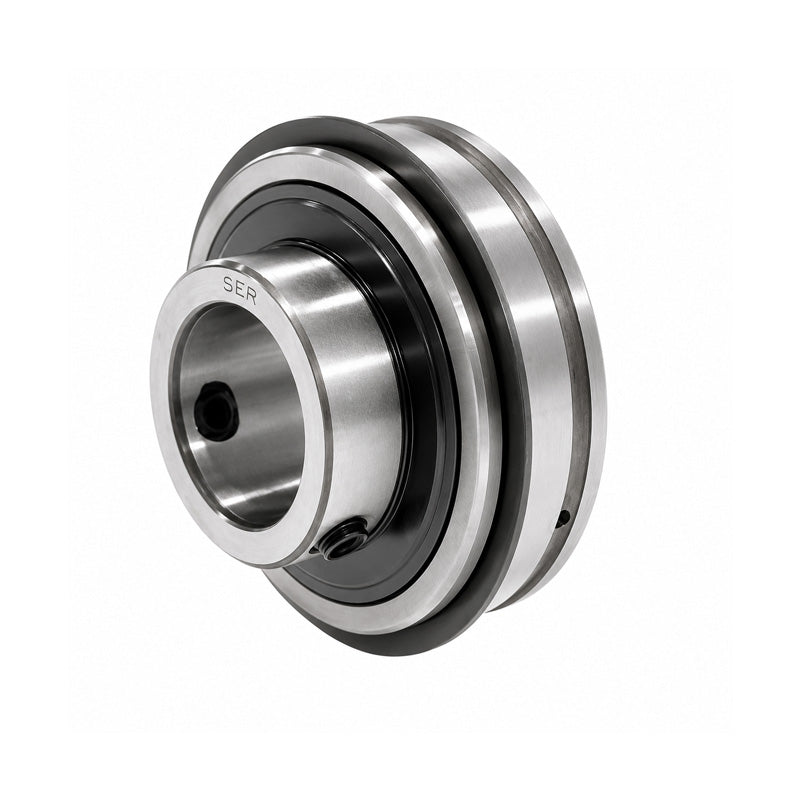

SER209-28 Imperial Bearing Insert and Snap Ring 1-3/4 inch Bore 85mm Outside Dia
- Regular price
- $32.28 ex VAT
- Sale price
- $32.28
- Regular price
-
In stock
Quantity Price Breaks
3
$28.73
4
$27.12
9
$26.79
19
$26.47
49
$26.15
99
$25.82
499
$24.21
999
$23.89
1999
$23.56
2999
$23.24
4999
$22.60
SKU:
SER.209-28
SER209-28 Imperial Bearing Insert and Snap Ring 1-3/4 inch Bore 85mm Outside Dia
- Regular price
- $32.28 ex VAT
- Sale price
- $32.28
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-3/4 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 27.8mm |
| n | = | 19mm |
| m | = | 30.2mm |
| E | = | 22.62mm |
| a | = | 1.65mm |
| h | = | 6.4mm |
| R | = | 8.72mm |
| J | = | 3.28mm |
| P | = | 91.6mm |
| G | = | 8mm |
| Grub screw | = | 5/16" |
| x24UNF | = | Weight |
| 0.90 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | Rec max speed |
| 3700 rpm | = | N/A |
