SKU: SER.208-24

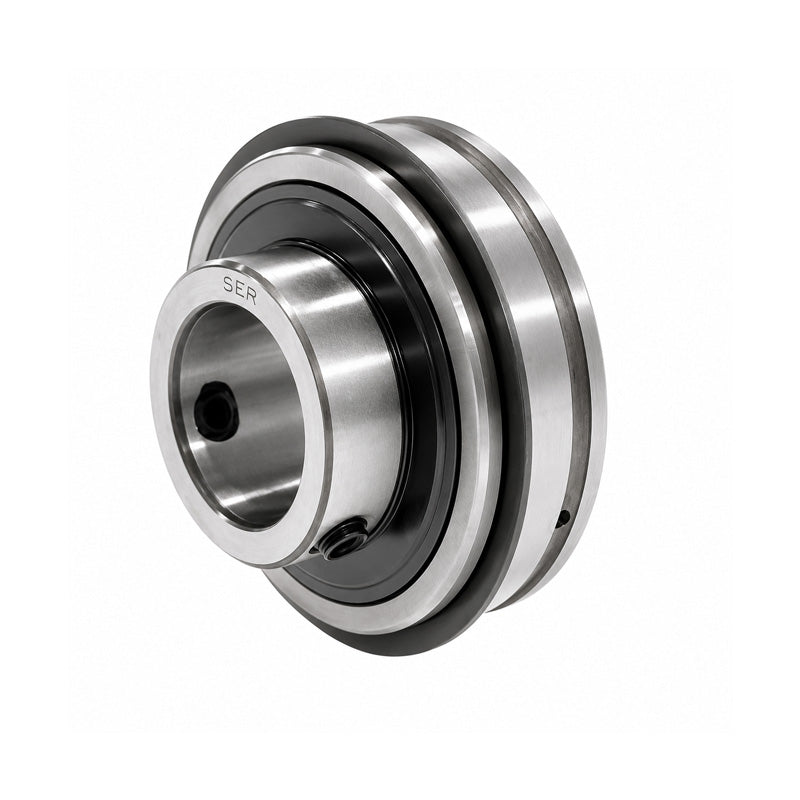

SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- $26.40 ex VAT
- Sale price
- $26.40
- Regular price
-
In stock
Quantity Price Breaks
3
$23.50
4
$22.18
9
$21.91
19
$21.65
49
$21.38
99
$21.12
499
$19.80
999
$19.54
1999
$19.27
2999
$19.01
4999
$18.48
SKU:
SER.208-24
SER208-24 Imperial Bearing Insert and Snap Ring 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- $26.40 ex VAT
- Sale price
- $26.40
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-1/2 inch |
| D | = | 80mm |
| Bi | = | 49.2mm |
| Be | = | 27.8mm |
| n | = | 19mm |
| m | = | 30.2mm |
| E | = | 22.62mm |
| a | = | 1.65mm |
| h | = | 6.4mm |
| R | = | 8.72mm |
| J | = | 3.28mm |
| P | = | 86.6mm |
| G | = | 8mm |
| Grub screw | = | 5/16" |
| -24UNF | = | Weight |
| 0.72 kg | = | Dynamic load |
| 2280 kgf | = | Static load |
| 1590 kgf | = | Rec max speed |
| 4000 rpm | = | N/A |
