SKU: SE511-609-SKF

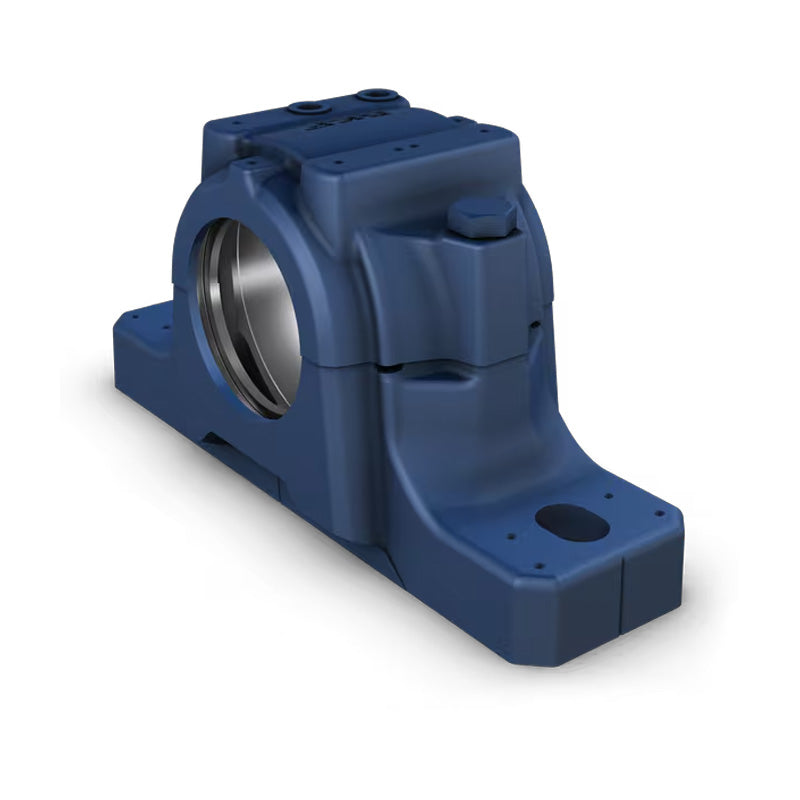

SKF SE511-609 Cast Iron Split Pillow Block Housing
- Regular price
- $121.67 ex VAT
- Sale price
- $121.67
- Regular price
-
In stock
Quantity Price Breaks
10+
$108.29
19+
$102.20
29+
$100.99
39+
$99.77
49+
$98.55
74+
$97.34
99+
$91.25
199+
$90.04
249+
$88.82
499+
$87.60
999+
$85.17
SKU:
SE511-609-SKF
SKF SE511-609 Cast Iron Split Pillow Block Housing
- Regular price
- $121.67 ex VAT
- Sale price
- $121.67
- Regular price
-
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |

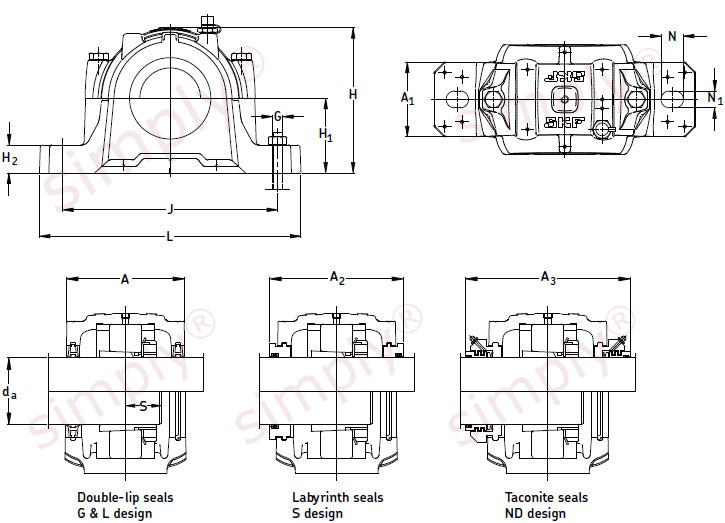

Technical
| da | = | 40mm |
| A | = | 3-3/4 inch = 95mm |
| A1 | = | 2-3/4 inch = 70mm |
| A2 | = | 4-1/4 inch = 107mm |
| A3 | = | 6-1/8 inch = 155mm |
| H | = | 5 inch = 128mm |
| H1 | = | 2.756 inch = 70mm |
| H2 | = | 1-1/8 inch = 28mm |
| J max | = | 8-7/16 inch = 215mm |
| J min | = | 8-1/16 inch = 205mm |
| J | = | 8-5/16 inch = 210mm |
| L | = | 10-1/16 inch = 255mm |
| N | = | 1 inch = 24mm |
| N1 | = | 3/4 inch = 18mm |
| G | = | 5/8 inch = 16mm |
| Weight | = | 5.46 kg |
