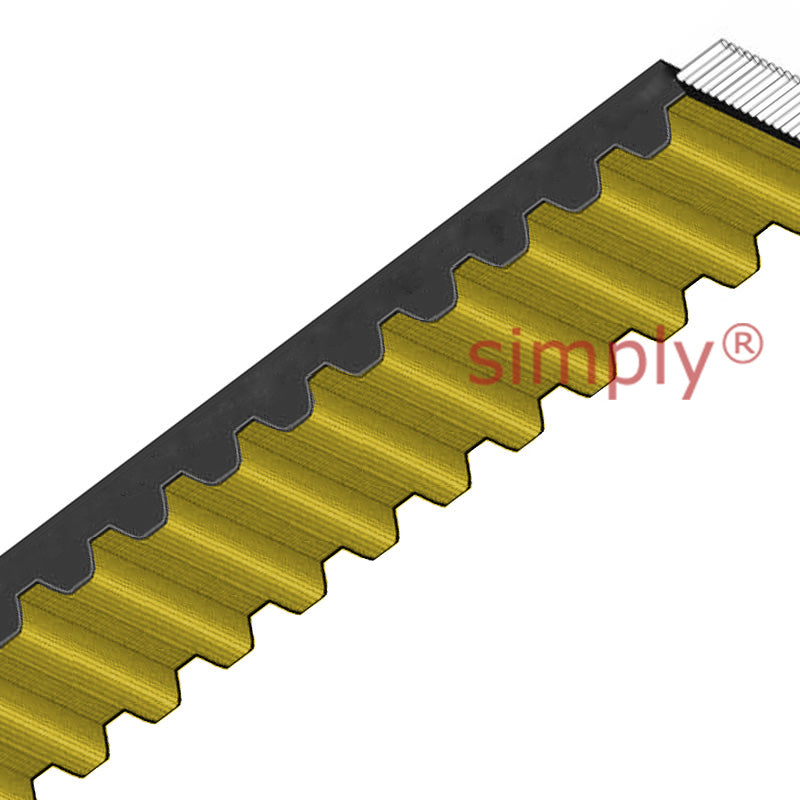

ContiTech SC14M3850X68 Synchrochain Timing Belt 68mm Width 3850mm Length 275 Teeth

SKU: SC14M3850X68

ContiTech SC14M3850X68 Synchrochain Timing Belt 68mm Width 3850mm Length 275 Teeth

$1,991.09 ex VAT
$1,991.09
ex VAT
Not in stock

Quantity Price Breaks

3 $1,772.07
5 $1,672.52
9 $1,652.60
19 $1,632.69
49 $1,612.78
74 $1,592.87
99 $1,493.32
199 $1,473.41
249 $1,453.50
499 $1,433.58
999 $1,393.76
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
ContiTech SC14M3850X68 Synchrochain Timing Belt 68mm Width 3850mm Length 275 Teeth
SKU: SC14M3850X68

ContiTech SC14M3850X68 Synchrochain Timing Belt 68mm Width 3850mm Length 275 Teeth

$1,991.09 ex VAT
$1,991.09
ex VAT

Description

Standard Synchrochain Timing Belts: These timing belts are high-performance timing belts designed for extreme applications requiring exceptional strength and durability. They offer excellent resistance to chemicals, oils, UV rays, and ozone, making them suitable for harsh tropical climates. With a temperature range of -40°C to 80°C, these belts withstand reverse flexing and operate maintenance-free at speeds up to 40 m/s. Ultra-strong Aramid tensile members ensure high torque transmission at low speeds, while the precise tooth match prevents ratcheting. Compact and economical, the belt enables lightweight, low-noise drives that require no lubrication or re-tightening.
Benefits: Maintenance-free, withstands reverse flexing, highly resistant to various chemicals and oils

Technical

Number of Teeth = 275
Belt Length = 3850mm
Belt Width = 68mm
Tooth Pitch t = 14mm
Belt Depth B1 = 10mm
Belt Depth B2 = 6.1mm
Temperature Range = -40 to 80 Deg C
Dynamic Stressing Range = Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications = 12090 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) = 16300 N
Weight Kg = 2.045 kg
