SKU: SBLF.207-23

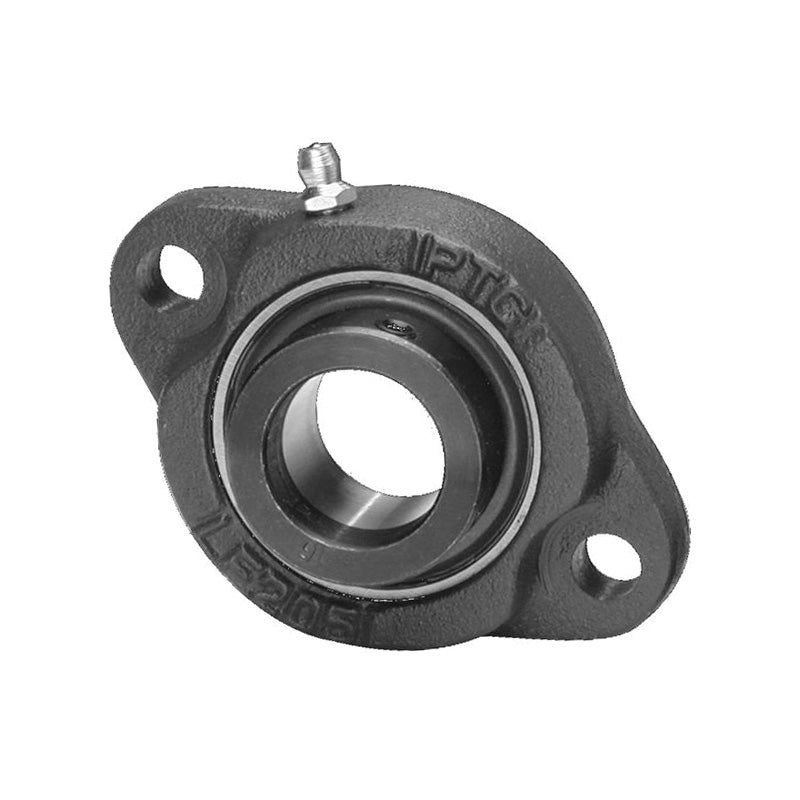

SBLF207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore Grub Screw Insert
- Regular price
- $30.18 ex VAT
- Sale price
- $30.18
- Regular price
-
In stock
Quantity Price Breaks
10+
$26.86
19+
$25.35
29+
$25.05
39+
$24.75
49+
$24.45
74+
$24.14
99+
$22.64
199+
$22.33
249+
$22.03
499+
$21.73
999+
$21.13
SKU:
SBLF.207-23
SBLF207-23 Imperial Two Bolt Cast Iron Oval Housing with 1-7/16 inch Bore Grub Screw Insert
- Regular price
- $30.18 ex VAT
- Sale price
- $30.18
- Regular price
-
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
Technical
| d | = | 1-7/16 inch |
| a | = | 122mm |
| e | = | 100mm |
| b | = | 89mm |
| i | = | 13mm |
| s | = | 12mm |
| g | = | 13mm |
| l | = | 24mm |
| Bolt | = | M10 |
| z | = | 36.5mm |
| n | = | 8.5mm |
| Weight | = | 0.9 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
