SKU: SBLF.206

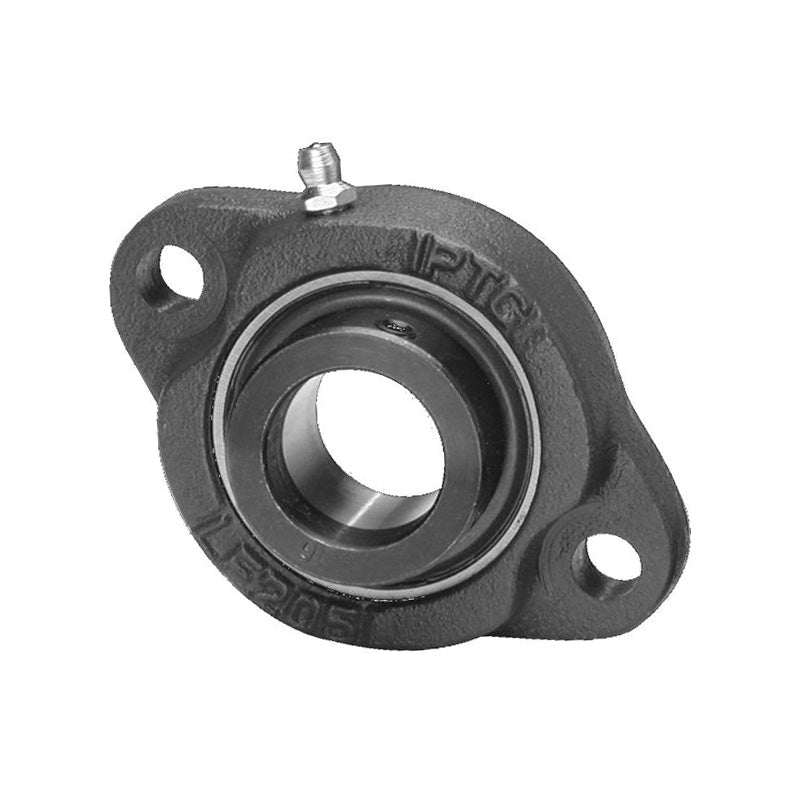

SBLF206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Grub Screw Insert
- Regular price
- $18.95 ex VAT
- Sale price
- $18.95
- Regular price
-
In stock
Quantity Price Breaks
10+
$16.87
19+
$15.92
29+
$15.73
39+
$15.54
49+
$15.35
74+
$15.16
99+
$14.21
199+
$14.02
249+
$13.83
499+
$13.64
999+
$13.27
SKU:
SBLF.206
SBLF206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Grub Screw Insert
- Regular price
- $18.95 ex VAT
- Sale price
- $18.95
- Regular price
-
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
Technical
| d | = | 30mm |
| a | = | 113mm |
| e | = | 90.5mm |
| b | = | 76mm |
| i | = | 12mm |
| s | = | 12mm |
| g | = | 12mm |
| l | = | 22.5mm |
| Bolt | = | M10 |
| z | = | 34mm |
| n | = | 8mm |
| Weight | = | 0.7 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
