SKU: SBLF.205
SBLF205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Grub Screw Insert
- Regular price
- $20.59 ex VAT
- Sale price
- $20.59
- Regular price
-
In stock
Quantity Price Breaks
10+
$18.33
19+
$17.30
29+
$17.09
39+
$16.88
49+
$16.68
74+
$16.47
99+
$15.44
199+
$15.24
249+
$15.03
499+
$14.82
999+
$14.41
SKU:
SBLF.205
SBLF205 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Grub Screw Insert
- Regular price
- $20.59 ex VAT
- Sale price
- $20.59
- Regular price
-
Description
|

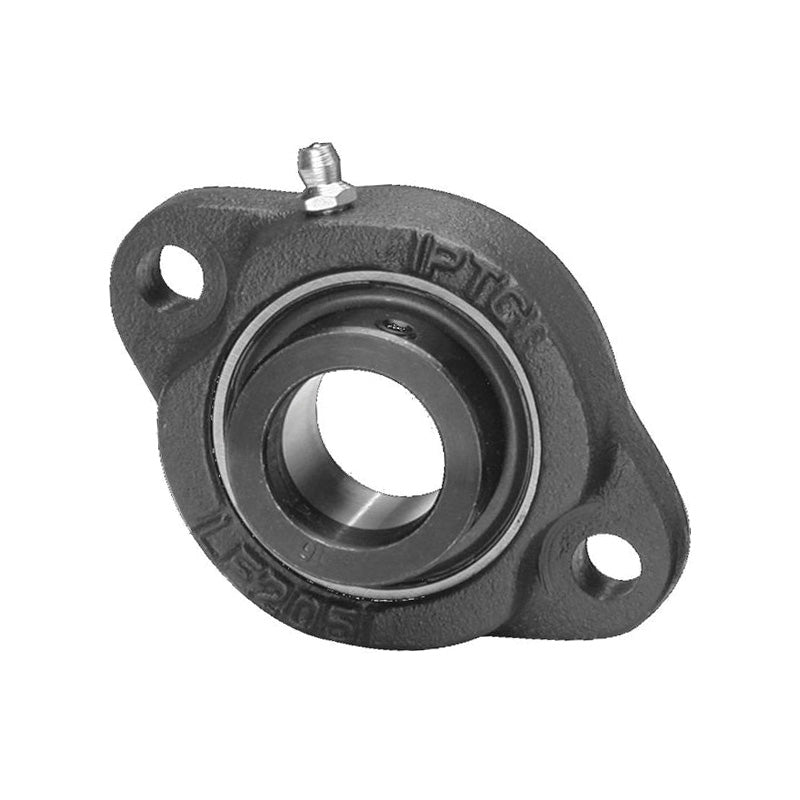

SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
Technical
| d | = | 25mm |
| a | = | 95mm |
| e | = | 76mm |
| b | = | 64mm |
| i | = | 11mm |
| s | = | 10mm |
| g | = | 11mm |
| l | = | 20mm |
| Bolt | = | M8 |
| z | = | 30.5mm |
| n | = | 7.5mm |
| Weight | = | 0.5 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
