SKU: SBLF.204-12

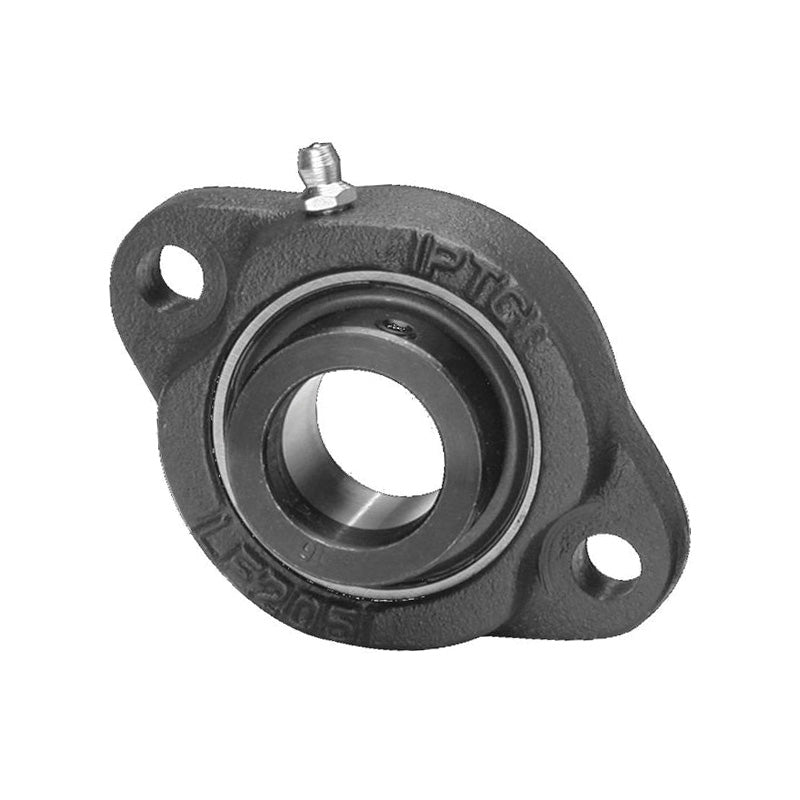

SBLF204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Grub Screw Insert
- Regular price
- $14.56 ex VAT
- Sale price
- $14.56
- Regular price
-
In stock
Quantity Price Breaks
10+
$12.96
19+
$12.23
29+
$12.08
39+
$11.94
49+
$11.79
74+
$11.65
99+
$10.92
199+
$10.77
249+
$10.63
499+
$10.48
999+
$10.19
SKU:
SBLF.204-12
SBLF204-12 Imperial Two Bolt Cast Iron Oval Housing with 3/4 inch Bore Grub Screw Insert
- Regular price
- $14.56 ex VAT
- Sale price
- $14.56
- Regular price
-
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
Technical
| d | = | 3/4 inch |
| a | = | 90mm |
| e | = | 71.5mm |
| b | = | 61mm |
| i | = | 11mm |
| s | = | 10mm |
| g | = | 11mm |
| l | = | 20mm |
| Bolt | = | M8 |
| z | = | 29mm |
| n | = | 7mm |
| Weight | = | 0.4 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
