SKU: SBLF.202

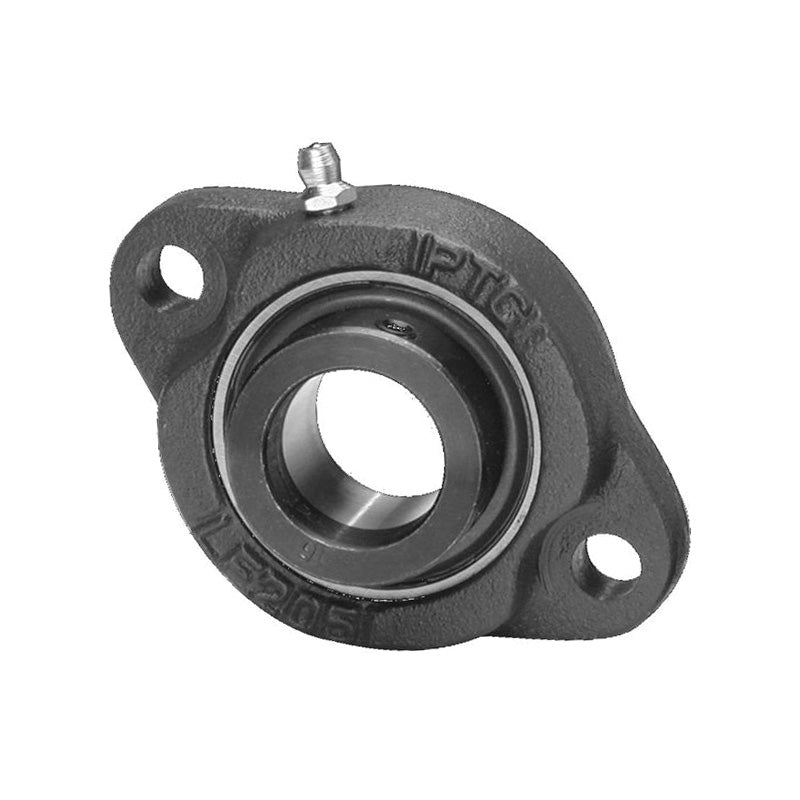

SBLF202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Grub Screw Insert
- Regular price
- $15.84 ex VAT
- Sale price
- $15.84
- Regular price
-
In stock
Quantity Price Breaks
10+
$14.10
19+
$13.31
29+
$13.15
39+
$12.99
49+
$12.83
74+
$12.67
99+
$11.88
199+
$11.72
249+
$11.56
499+
$11.40
999+
$11.09
SKU:
SBLF.202
SBLF202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Grub Screw Insert
- Regular price
- $15.84 ex VAT
- Sale price
- $15.84
- Regular price
-
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |

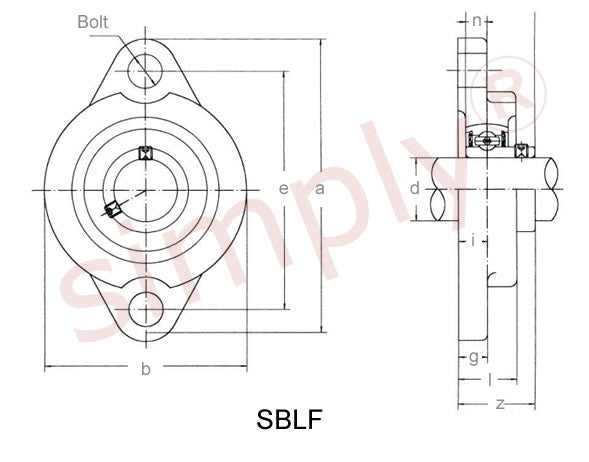

Technical
| d | = | 15mm |
| a | = | 81mm |
| e | = | 63.5mm |
| b | = | 56mm |
| i | = | 9.5mm |
| s | = | 8mm |
| g | = | 9.5mm |
| l | = | 18mm |
| Bolt | = | M6 |
| z | = | 25.5mm |
| n | = | 6mm |
| Weight | = | 0.3 kg |
| Dynamic load | = | 760 kgf |
| Static load | = | 450 kgf |
