SKU: SBLF.201

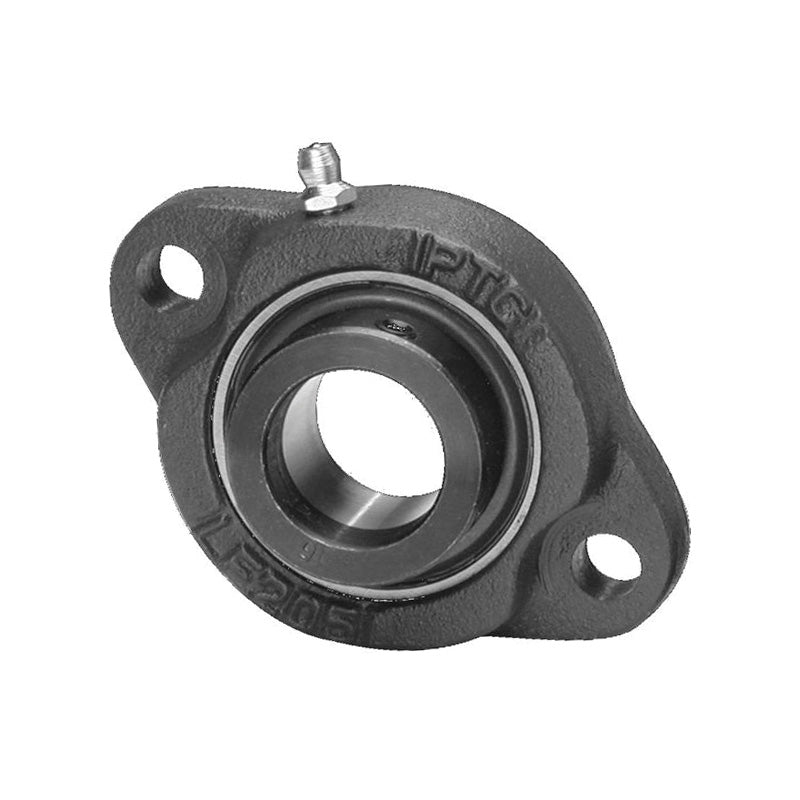

SBLF201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Grub Screw Insert
- Regular price
- $16.06 ex VAT
- Sale price
- $16.06
- Regular price
-
In stock
Quantity Price Breaks
10+
$14.29
19+
$13.49
29+
$13.33
39+
$13.17
49+
$13.01
74+
$12.85
99+
$12.05
199+
$11.88
249+
$11.72
499+
$11.56
999+
$11.24
SKU:
SBLF.201
SBLF201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Grub Screw Insert
- Regular price
- $16.06 ex VAT
- Sale price
- $16.06
- Regular price
-
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
Technical
| d | = | 12mm |
| a | = | 81mm |
| e | = | 63.5mm |
| b | = | 56mm |
| i | = | 9.5mm |
| s | = | 8mm |
| g | = | 9.5mm |
| l | = | 18mm |
| Bolt | = | M6 |
| z | = | 25.5mm |
| n | = | 6mm |
| Weight | = | 0.3 kg |
| Dynamic load | = | 750 kgf |
| Static load | = | 450 kgf |
