SKU: SALKAC16M-CDX

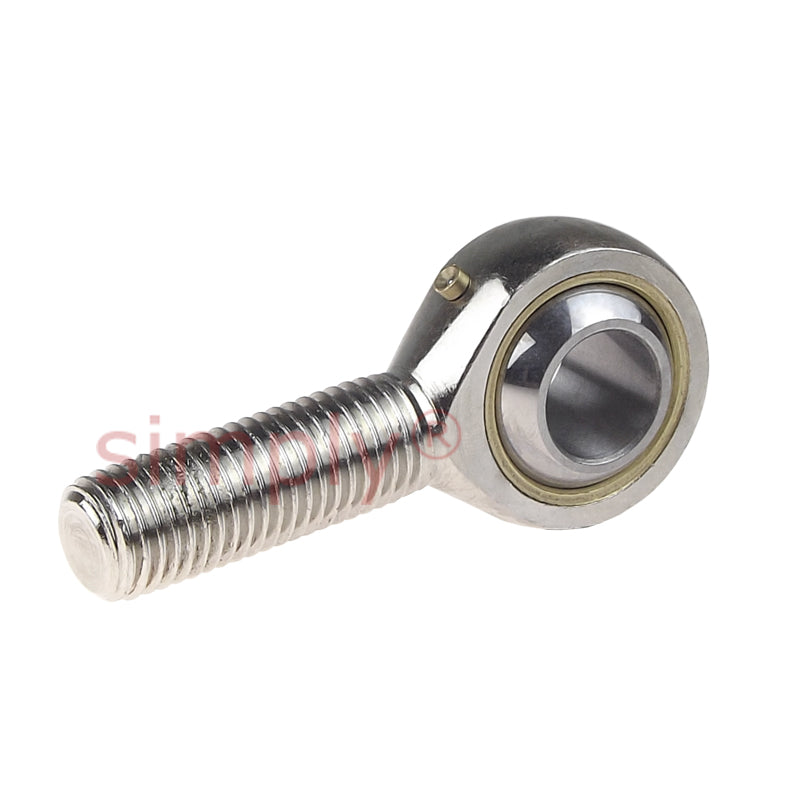

Codex SALKAC16M Left Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
- Regular price
- $31.55 ex VAT
- Sale price
- $31.55
- Regular price
-
In stock
Quantity Price Breaks
10
$28.08
19
$26.50
29
$26.19
39
$25.87
49
$25.56
74
$25.24
99
$23.66
199
$23.35
249
$23.03
499
$22.72
999
$22.09
SKU:
SALKAC16M-CDX
Codex SALKAC16M Left Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
- Regular price
- $31.55 ex VAT
- Sale price
- $31.55
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 16mm |
| d2 max | = | 43mm |
| G | = | M16 |
| B | = | 21mm |
| C1 max | = | 15mm |
| h1 | = | 66mm |
| Max misalignment angle | = | 15 degrees |
| Dynamic load | = | 21.6 kN |
| Static load | = | 23.2 kN |
| dk | = | 28.5mm |
| l1 min | = | 37mm |
| l2 max | = | 89mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.19 kg |
