SKU: RCK15-25x65

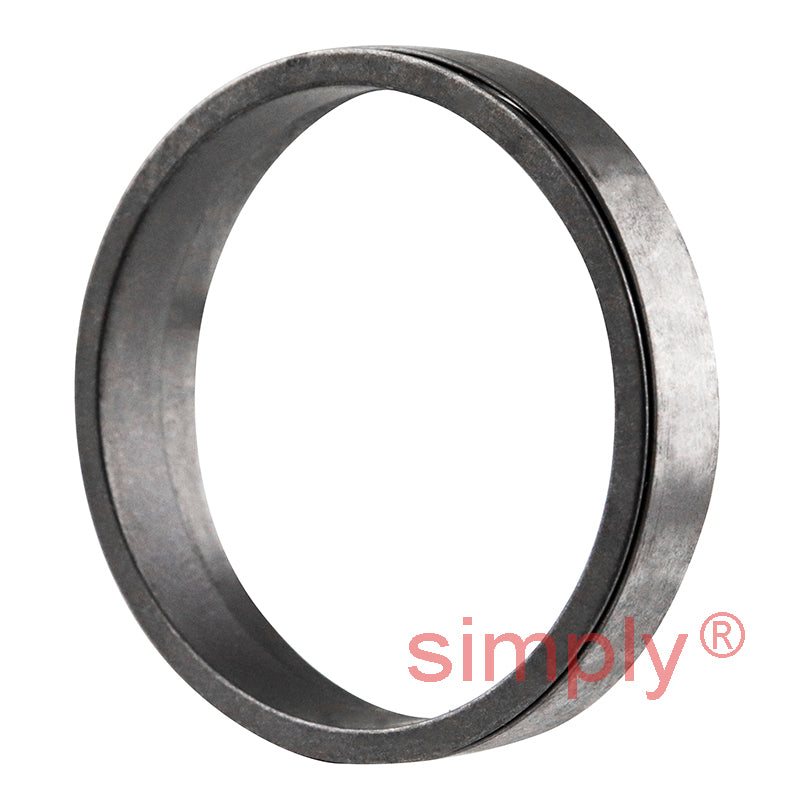

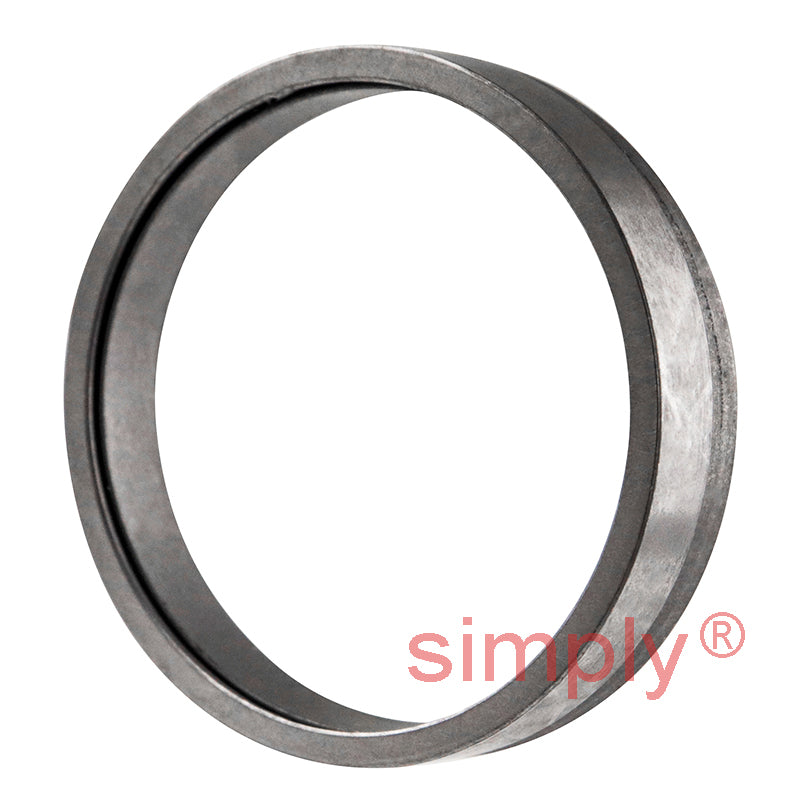

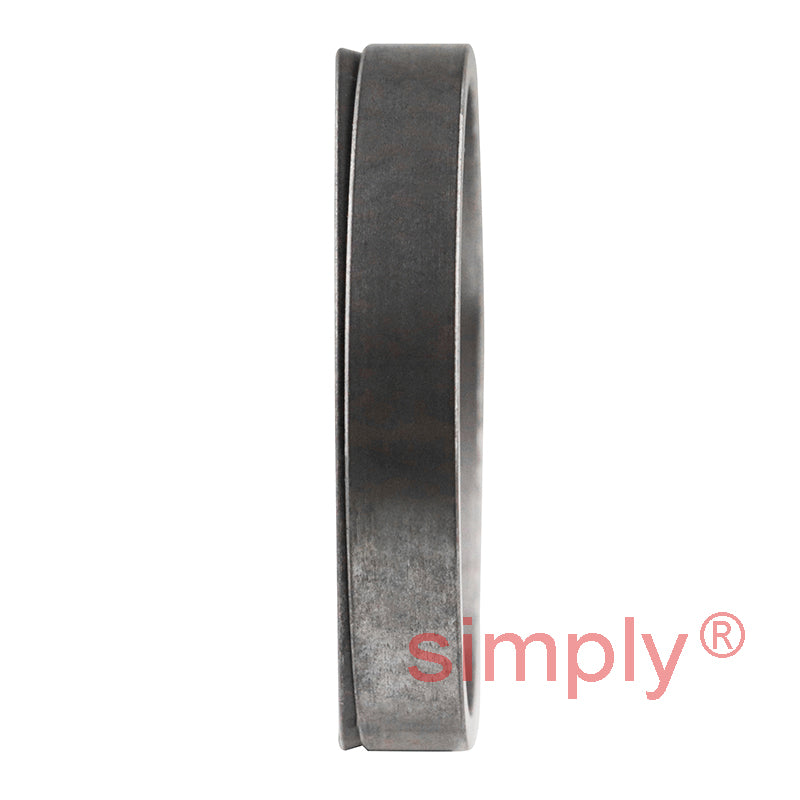

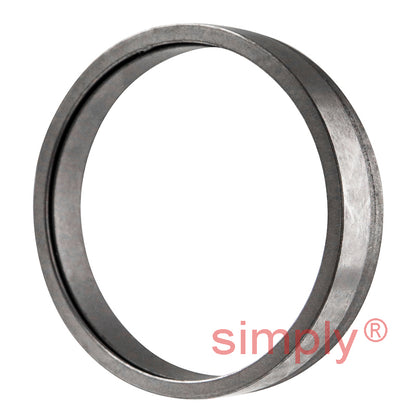

RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
- Regular price
- $19.34 ex VAT
- Sale price
- $19.34
- Regular price
-
In stock
Quantity Price Breaks
10
$17.21
20
$16.25
30
$16.05
50
$15.86
75
$15.67
100
$15.47
200
$14.51
250
$14.31
500
$14.12
1000
$13.92
SKU:
RCK15-25x65
RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
- Regular price
- $19.34 ex VAT
- Sale price
- $19.34
- Regular price
-

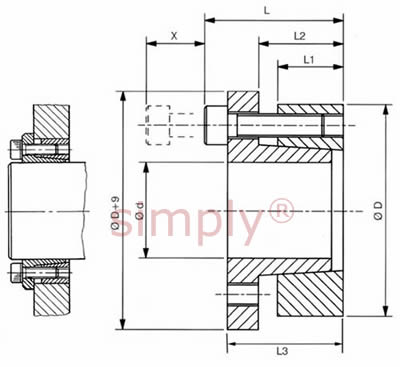

Technical
| d | = | 25mm |
| D | = | 65mm |
| L | = | 39mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 17mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 22mm | |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 31mm | |
| X | = | 25mm |
| Torque Cap. M Nm | = | 637 |
| Axial Force F kN | = | 51 |
| Shaft Ps N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 320 | |
| Hub Ph N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 122 | |
| M8 | = | M8 |
| Clamping Screws Torque Nm | = | 41 |
| Kg | = | 0.63 |
| Min. Hub Dia. Assy. A | = | 97 |
| Min. Hub Dia. Assy. B | = | 89 |
| Min. Hub Dia. Assy. C | = | 82 |
