SKU: RAXN510-MB

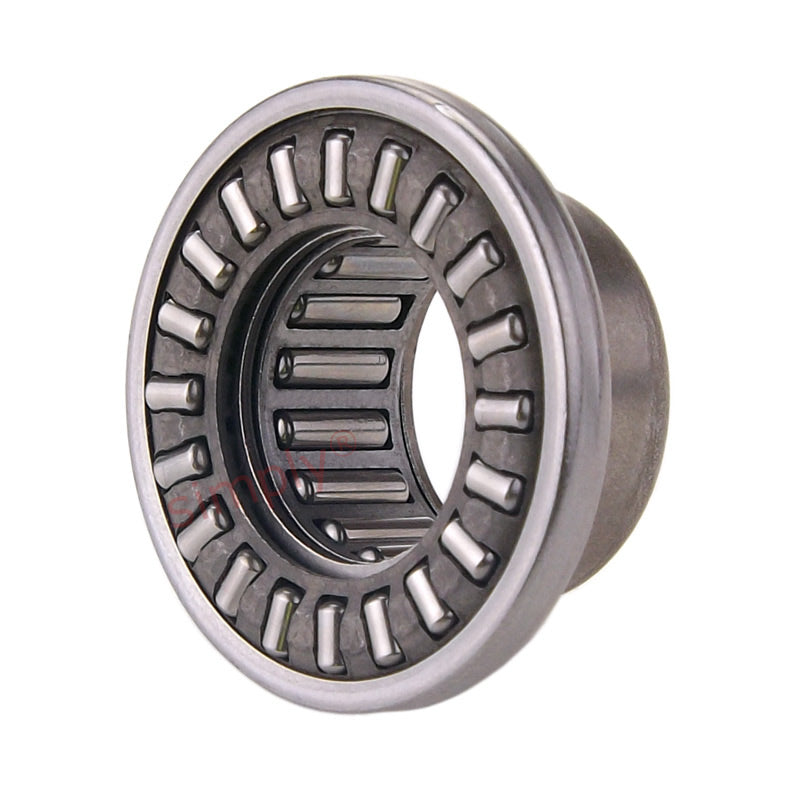

Major Brand RAXN 510 Needle Combined Bearing with Needle Thrust Cage 10x19x19.5mm Allow 2-3 Days
- Regular price
- $397.89 ex VAT
- Sale price
- $397.89
- Regular price
-
Not in stock
Quantity Price Breaks
10
$354.12
19
$334.23
29
$330.25
39
$326.27
49
$322.29
74
$318.31
99
$298.42
199
$294.44
249
$290.46
499
$286.48
999
$278.52
SKU:
RAXN510-MB
Major Brand RAXN 510 Needle Combined Bearing with Needle Thrust Cage 10x19x19.5mm Allow 2-3 Days
- Regular price
- $397.89 ex VAT
- Sale price
- $397.89
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 10mm |
| C | = | 19.5mm |
| D | = | 19mm |
| Da | = | 22mm |
| Eb | = | 12.2mm |
| Ea | = | 18.5mm |
| C1 | = | 5.5mm |
| C2 | = | 6mm |
| rs min | = | 0.35mm |
| Radial dynamic load | = | 5.9 kN |
| Radial static load | = | 7.16 kN |
| Axial dynamic load | = | 8.2 kN |
| Axial static load | = | 17.9 kN |
| Speed rating | = | 15500 rpm |
| Inner ring | = | JR 7x10x16 kN |
| Weight | = | 0.026 kg |
